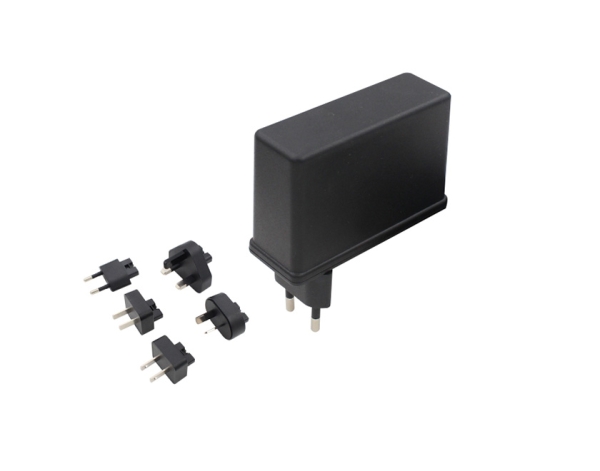

UES60LCP2-SPA
The UES60LCP2-SPA combines a compact power supply wall plug design with robust performance, making it ideal for use as a medical device power supply or switching power adaptor for critical equipment.
- 符合通信，医疗安全认证
- 2 MOPP隔离保护
- 漏电流≤ 100μA
- 待机功耗≤0.15W
- 12V 到24V 输出，最高60W
- 工作海拨高度5000米
- 可换插头
产品特性
| 输入电压 | 80-264VAC | 工作温度 | 0~40℃ | |
| 输入电流 | 1.7A，在80VAC 输入条件下 | 储存温度 | -5~60℃ | |
| 工作海拔高度 | DOE VI & CoC V5 Tier2(2016) | 湿度 | 10〜90％RH, 无冷凝 | |
| 待机功耗 | 0.15W MAX | 平均故障间隔时间 | 在25℃环境温度下，最大负载工作平均无故障时间100,000小时(根据 MIL-HDBK-217标准) | |
| 重量 | 220g | 机械规格 | 90.5(L) 33.5(W) 58.5(H)mm | |
| 应用场所 | 适用于通信、医疗等设备充电 | 安规标准 | CE(EN62368-1)、CB(IEC62368-1/ IEC60601-1/60601-1-11)、CCC(GB4943.1)、FCC(PART 15)、UL( ANSI / AAMI ES60601-1/60601-1-11/CAN / CSA-C22.2 NO。60601-1/UL62368)、TuV SUD/Mark(EN60601-1/EN60601-1-11)、TuV SUD/ GS( EN62368-1) | |
| 型号 | 电压 （V） | 电流 (A) | 功率 | 纹波 (最大) mVpk-pk | 电压公差 | 线性与负数调整率 | 平均效率 | 启动延迟时间 |
| UES60LCP2-XXXYYYSPA | 12.0 | 0.01-5.00 | 60.00 | 200 | ±5% | 线性调整率: ±1% 负载调整率: ±5% | 89.00% | ≤3s |
| 12.1-13.0 | 0.01-4.60 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 13.1-14.0 | 0.01-4.28 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 14.1-15.0 | 0.01-4.00 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 19.0 | 0.01-3.15 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 19.1-20.0 | 0.01-3.00 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 20.1-21.0 | 0.01-2.85 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 21.1-22.0 | 0.01-2.72 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 22.1-23.0 | 0.01-2.60 | 60.00 | 200 | ±5% | 89.00% | ≤3s | ||
| 23.1-24.0 | 0.01-2.50 | 60.00 | 200 | ±5% | 89.00% | ≤3s |
The UES60LCP2-SPA is a reliable and versatile switching power adaptor designed to meet the power requirements of communication, medical, and other critical equipment. Combining safety, efficiency, and adaptability, it is ideal for a variety of applications.
Medical Devices
The UES60LCP2-SPA medical adapter is ideally suited for powering portable medical devices such as patient monitors, infusion pumps, and diagnostic tools. With 2 MOPP isolation protection and low leakage current ≤ 100μA, UE Electronic medical device power supply ensures safety and compliance with strict medical safety standards, making it a dependable power solution in healthcare environments.
Communication Devices
For communication equipment, including routers, modems, wireless access points, and handheld devices, the UES60LCP2-SPA switching power adaptor provides a stable 12V to 24V output with power up to 60W. Its global adaptability is enhanced by an interchangeable plug design, enabling seamless operation across different regions and power outlets.
General-Purpose Devices
Beyond medical and communication applications, the UES60LCP2-SPA switching power adaptor serves as an excellent power solution for portable tools, test instruments, and various electronic devices. UE Electronic power supply wall plug’s high efficiency, low standby power consumption ≤ 0.15W, and reliable performance in challenging conditions, such as altitudes up to 5000 meters, make it suitable for demanding industrial and commercial use.
With its robust design, medical-grade safety, and flexible output, the UES60LCP2-SPA medical adapter offers a complete solution for powering equipment in medical, communication, and general-purpose environments. UE Electronic medical adaptor’s combination of reliability, efficiency, and global compatibility ensures dependable performance across a wide range of industries
1. What types of devices is the UES60LCP2-SPA suitable for?
The UES60LCP2-SPA is a medical power supply adapter ideal for powering medical devices, communication equipment, and other electronics. Our medical adapter works well with patient monitors, infusion pumps, and communication tools like routers.
2. Does the UES60LCP2-SPA meet medical safety standards?
Yes, this medical AC DC power supply complies with international medical safety certifications, offering 2 MOPP isolation protection for secure and reliable use in medical applications.
3. What makes the UES60LCP2-SPA suitable for global use?
The UES60LCP2-SPA features an interchangeable plug design, making it a versatile power supply wall plug that can adapt to different regions, ensuring compatibility with various electrical outlets worldwide.
4. What is the power and output range of this switching power adaptor?
The medical adaptor provides an output range of 12V to 24V and delivers up to 60W of power, making it suitable for a wide range of medical and communication equipment.
5. How energy-efficient is the UES60LCP2-SPA?
This switching power adapter is highly efficient, with a standby power consumption of ≤0.15W, ensuring minimal energy use when idle and meeting energy efficiency standards.
6. Is the UES60LCP2-SPA switching power adaptor safe for sensitive medical devices?
Yes, as a medical device power supply, the UE Electronic switching power adaptor offers a low leakage current of ≤100μA, ensuring safety for sensitive medical and electronic equipment.
7. Can the UES60LCP2-SPA be used at high altitudes?
Absolutely. This medical power supply adapter is designed to operate at altitudes up to 5000 meters, making it reliable even in high-altitude environments.
8. Is the UES60LCP2-SPA compact and portable?
Yes, its lightweight design, compact form factor, and interchangeable plug make it an ideal medical adaptor for portable and travel-friendly applications.
