UES48-SPAZ
- 医疗和ITE安全认证
- 2 MOPP 隔离保护
- 漏电流 ≤ 50μA
- DOE 六级能效 CoC V5 Tier 2
- 待机功耗≤0.075W
- 9.1V至54V输出, 最高48W
- 满足4KV浪涌抗扰度水平
- 工作海拨高度3048米

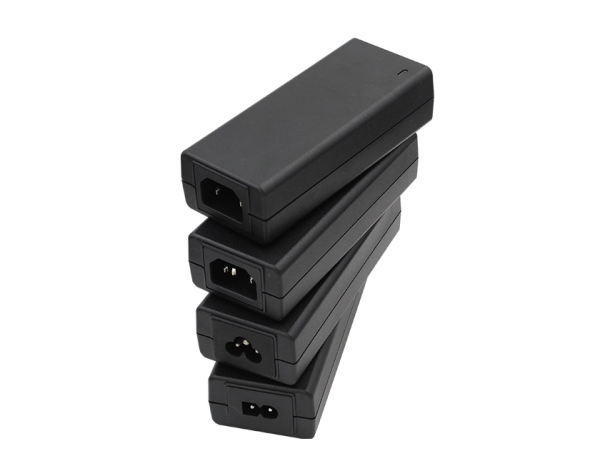

- 输入有4种AC插座形式
- 涵盖短路保护、过压保护、过载保护;
产品特性
| 输入电压 | 90~264VAC(class I); 80~264VAC(class II) | 工作温度 | -10~40℃ |
| 输入电流 | 1.1A，在80/90VAC 输入条件下 | 储存温度 | -20~70℃ |
| 海拔高度 | 5000m | 湿度 | 10~90% RH, 非冷凝 |
| 待机功耗 | 0.075W | 平均故障间隔时间 | 在25℃环境温度下，最大负载工作平均无故障时间190,000小时(根据MIL-HDBK-217标准) |
| 重量 | 240g | 机械规格 | 122.0(L) 51.0(W) 31.5(H)mm |
| 应用场所 | 适用于医疗设备类电源适配器 | 安规标准 | CB( IEC60601-1/ IEC60601-1-11(class II)/IEC60950-1/IEC62368-1)、UL( ANSI/AAMI ES60601-1/CAN/CSA C22.2 NO.60601-1/UL60950-1,UL62368-1)、TUV Rheinland/Mark(EN60601-1, EN60601-1-11(class II))、TUV Rheinland/GS( EN62368-1)、CCC(GB4943.1)、CE(EN62368)、PSE(J62368)、RCM( AS/NZS 62368.1)、KC(K60950-1)、FCC(FCC PART 15) |
型号 | 电压 | 电流 | 纹波 | 电压公差 | 线性与负数调整率 | 平均效率 | 启动延迟时间 |
UES48-XXXYYYSPAZ | 9.1-10.0 | 0.01-4.50 | 120 | ±5% | 线性调整率:±1%
负载调整率:±5%
| 88.70% | ≤3s |
10.1-11.0 | 0.01-4.36 | 120 | ±5% | 89.00% | ≤3s | ||
11.1-12.0 | 0.01-4.00 | 120 | ±5% | 89.00% | ≤3s | ||
12.1-13.0 | 0.01-3.69 | 120 | ±5% | 89.00% | ≤3s | ||
13.1-14.0 | 0.01-3.42 | 120 | ±5% | 89.00% | ≤3s | ||
14.1-15.0 | 0.01-3.20 | 120 | ±5% | 89.00% | ≤3s | ||
15.1-16.0 | 0.01-3.00 | 120 | ±5% | 89.00% | ≤3s | ||
16.1-17.0 | 0.01-2.82 | 120 | ±5% | 89.00% | ≤3s | ||
17.1-18.0 | 0.01-2.66 | 120 | ±5% | 89.00% | ≤3s | ||
18.1-19.0 | 0.01-2.52 | 120 | ±5% | 89.00% | ≤3s | ||
19.1-20.0 | 0.01-2.40 | 120 | ±5% | 89.00% | ≤3s | ||
20.1-21.0 | 0.01-2.28 | 150 | ±5% | 89.00% | ≤3s | ||
21.1-22.0 | 0.01-2.18 | 150 | ±5% | 89.00% | ≤3s | ||
22.1-23.0 | 0.01-2.08 | 150 | ±5% | 89.00% | ≤3s | ||
23.1-24.0 | 0.01-2.00 | 150 | ±5% | 89.00% | ≤3s | ||
24.1-25.0 | 0.01-1.92 | 150 | ±5% | 89.00% | ≤3s | ||
25.1-26.0 | 0.01-1.84 | 150 | ±5% | 89.00% | ≤3s | ||
26.1-27.0 | 0.01-1.77 | 150 | ±5% | 89.00% | ≤3s | ||
27.1-28.0 | 0.01-1.71 | 150 | ±5% | 89.00% | ≤3s | ||
28.1-29.0 | 0.01-1.65 | 150 | ±5% | 89.00% | ≤3s | ||
29.1-30.0 | 0.01-1.60 | 150 | ±5% | 89.00% | ≤3s | ||
30.1-31.0 | 0.01-1.54 | 300 | ±5% | 89.00% | ≤3s | ||
31.1-32.0 | 0.01-1.50 | 300 | ±5% | 89.00% | ≤3s | ||
32.1-33.0 | 0.01-1.45 | 300 | ±5% | 89.00% | ≤3s | ||
33.1-34.0 | 0.01-1.41 | 300 | ±5% | 89.00% | ≤3s | ||
34.1-35.0 | 0.01-1.37 | 300 | ±5% | 89.00% | ≤3s | ||
35.1-36.0 | 0.01-1.33 | 300 | ±5% | 89.00% | ≤3s | ||
36.1-37.0 | 0.01-1.29 | 300 | ±5% | 89.00% | ≤3s | ||
37.1-38.0 | 0.01-1.26 | 300 | ±5% | 89.00% | ≤3s | ||
38.1-39.0 | 0.01-1.23 | 300 | ±5% | 89.00% | ≤3s | ||
39.1-40.0 | 0.01-1.20 | 300 | ±5% | 89.00% | ≤3s | ||
40.1-41.0 | 0.01-1.17 | 300 | ±5% | 89.00% | ≤3s | ||
41.1-42.0 | 0.01-1.14 | 300 | ±5% | 89.00% | ≤3s | ||
42.1-43.0 | 0.01-1.11 | 300 | ±5% | 89.00% | ≤3s | ||
43.1-44.0 | 0.01-1.09 | 300 | ±5% | 89.00% | ≤3s | ||
44.1-45.0 | 0.01-1.06 | 300 | ±5% | 89.00% | ≤3s | ||
45.1-46.0 | 0.01-1.04 | 300 | ±5% | 89.00% | ≤3s | ||
46.1-47.0 | 0.01-1.02 | 300 | ±5% | 89.00% | ≤3s | ||
47.1-48.0 | 0.01-1.00 | 300 | ±5% | 89.00% | ≤3s | ||
48.1-49.0 | 0.01-0.97 | 300 | ±5% | 89.00% | ≤3s | ||
49.1-50.0 | 0.01-0.96 | 300 | ±5% | 89.00% | ≤3s | ||
50.1-51.0 | 0.01-0.94 | 300 | ±5% | 89.00% | ≤3s | ||
51.1-52.0 | 0.01-0.92 | 300 | ±5% | 89.00% | ≤3s | ||
52.1-53.0 | 0.01-0.90 | 300 | ±5% | 89.00% | ≤3s | ||
53.1-54.0 | 0.01-0.88 | 300 | ±5% | 89.00% | ≤3s |
