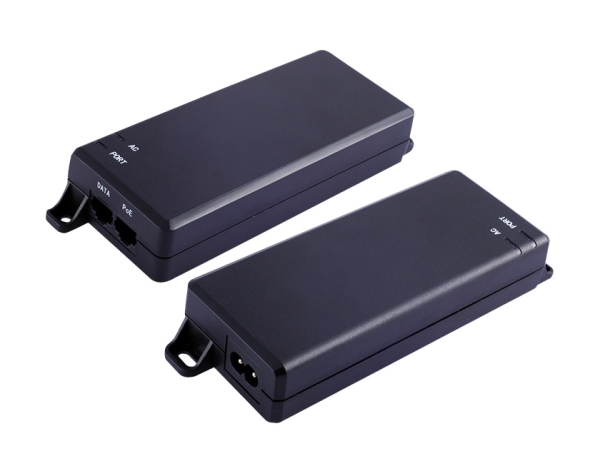

POE35-XXA

The POE35-XXA is a high-performance PoE power adapter designed for reliable power delivery and data transmission. UE Electronic PoE power adapter POE35-XXA meets a 6KV surge immunity level for enhanced reliability in demanding environments.

  • AC input voltage 90-264VAC
  • Short Circuit, over current, over voltage protection
  • Comply with IEEE802.3af/at standard
  • Compatible with 10/100/1000(Mbps)/1Gbps/2.5Gbps/5Gbps/Ethernet transmission
  • Meets 6KV surge immunity level
产品特性
输入电压90-264VAC工作温度-40~50℃
输入电流1.0A储存温度-40~70℃
输出电压范围±5%工作湿度非凝结条件下,湿度5%-95%
重量250g平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间500,000小时(根据 MIL-HDBK-217标准)
应用场所适用于IP电话,无线AP,POS设备、可编程摄像头等网络设备供电机械规格172.0(L)  62.0(W)  30.6(H)mm
  安规标准
  • CCC(GB4943.1)
  • 符合cULus(UL62368-1),CB(IEC62368-1),CE(EN62368-1)
型号电压(V)电流(A)纹波(mV)平均效率
(%)Min
PoE35-48A480.6520085.0
PoE35-54A540.6520085.0

The POE35-XXA is a reliable PoE power adapter designed for diverse network equipment applications.

  • IP Phones

The POE35-XXA works as a reliable IP phone power adapter, delivering consistent power and data through a single Ethernet cable. It simplifies office VoIP setups by reducing the need for additional wiring, ensuring the smooth operation of communication systems.

  • Wireless Access Points (APs)

As a versatile PoE power injector, the POE35-XXA efficiently powers wireless APs, enabling high-speed connectivity for enterprise networks. UE Electronic PoE power adapter’s compatibility with 10/100/1000 Mbps and up to 5Gbps Ethernet makes it ideal for robust wireless infrastructure.

  • POS Equipment

The POE35-XXA serves as an excellent switching power adapter for POS systems, providing reliable power and data transfer for retail and hospitality industries. Our PoE power adapter’s stable performance ensures smooth and uninterrupted transactions.

  • Programmable Cameras

Designed to support programmable cameras, this 48V PoE power supply ensures consistent power delivery for surveillance systems. With 6KV surge immunity, this UE Electronic PoE switch power supply provides enhanced reliability for indoor and outdoor security applications.

  • Network Switches and IoT Gateways

The POE35-XXA acts as a dependable PoE switch power supply, powering IoT gateways. Its IEEE802.3af/at compliance makes it a reliable choice for smart home systems and industrial IoT applications.

  • Smart Home and Security Systems

Perfect for powering smart home hubs and security devices, the POE35-XXA functions as an efficient PoE injector adapter. Its ability to deliver both power and data over Ethernet enhances the performance of modern connected devices.

What devices can the POE35-XXA power?

The POE35-XXA is designed as a reliable PoE power adapter and is suitable for powering IP phones, wireless APs, POS equipment, programmable cameras, and other network devices requiring PoE injector adapters.

This PoE switch power supply supports a wide input voltage range of 90-264VAC, making it ideal for use in various global power environments.

This small PoE-powered switch is compatible with 10/100/1000 Mbps Ethernet and supports high-speed transmissions like 1Gbps, 2.5Gbps, and 5Gbps.

The POE35-XXA switching power adapter has built-in protections against short circuits, overcurrent, and overvoltage, ensuring safe operation for all connected devices.

This PoE 35 power adapter operates reliably within a temperature range of -40°C to 50°C, making it suitable for both indoor and outdoor applications.

The UE Electronic PoE power adapter meets a 6KV surge immunity level, providing robust protection for your network devices, even in areas with unstable power conditions.

This PoE power injector has a compact design with dimensions of 172.0(L) x 62.0(W) x 30.6(H) mm and weighs 250g, ensuring easy integration into various setups.

The output voltage of this PoE power adapter has a range of ±5%, ensuring stable and consistent power delivery to connected devices.

输入电压90-264VAC工作温度-40~50℃
输入电流1.0A储存温度-40~70℃
输出电压范围±5%工作湿度非凝结条件下,湿度5%-95%
重量250g平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间500,000小时(根据 MIL-HDBK-217标准)
应用场所适用于IP电话,无线AP,POS设备、可编程摄像头等网络设备供电机械规格172.0(L)  62.0(W)  30.6(H)mm
  安规标准
  • CCC(GB4943.1)
  • 符合cULus(UL62368-1),CB(IEC62368-1),CE(EN62368-1)
型号电压(V)电流(A)纹波(mV)平均效率
(%)Min
PoE35-48A480.6520085.0
PoE35-54A540.6520085.0
