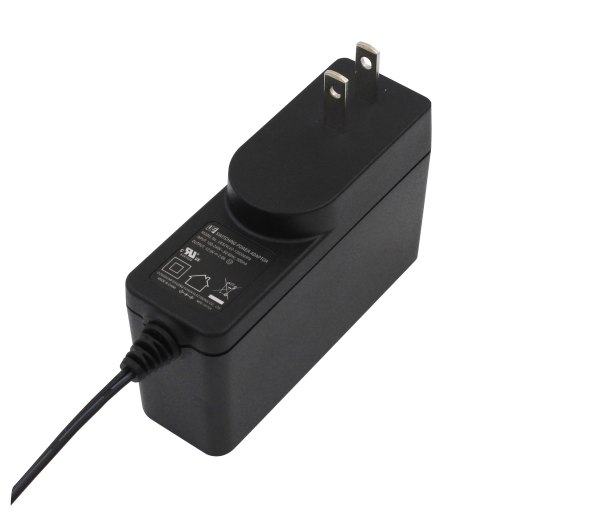

UES24LU2-SPA
The UES24LU2-SPA switching adapter plug is a versatile and energy-efficient wall power supply designed for use with medical, communication, and electronic devices. UE Electronic switching power supply plug provides safe, efficient, and reliable power delivery.
- 符合通信、医疗安全认证
- 2 MOPP隔离保护
- 漏电流≤ 100μA
- 待机功耗≤0.075W
- DOE效率等级VI
- 工作海拨高度5000米
产品特性
| 输入电压 | 90-264VAC | 工作温度 | 0~45℃ |
| 输入电流 | 0.5A，在90VAC 输入条件下 | 储存温度 | -20℃~60℃ |
| 工作海拔高度 | 5000m | 工作湿度 | 10~90% RH, 非冷凝 |
| 待机功耗 | ≤0.075W | 平均故障间隔时间 | >100,000hrs MIL-HDBK-217,在25℃环境温度下。 |
| 重量 | 160g | 机械规格 | 88.0(L) 30.0(W) 57.0(H)mm |
| 应用场所 | 适用于医疗、信息设备电源适配器 | 安规标准 | CB(IEC60601-1/IEC62368-1)、UL(ANSI / AAMI ES60601-1/CAN / CSA-C22.2 NO.60601-1)、TuV（EN62368-1)、PSE(J62368-1) |
|
型号 | 电压 | 电流 | 功率（瓦） | 纹波 | 电压公差 | 线性与负数调整率 | 平均效率 | 启动延迟时间 |
UES24LU2-XXXYYYSPA
| 6.1-7.0 | 0.01-3.00 | 21 | 120 | ±5% |
线性调整率:±1% 负载调整率:±5%
| 86.20% | ≤3s |
7.1-8.0 | 0.01-2.62 | 21 | 120 | ±5% | 86.20% | ≤3s | ||
8.1-9.0 | 0.01-2.33 | 21 | 150 | ±5% | 86.20% | ≤3s | ||
9.1-10.0 | 0.01-2.10 | 21 | 150 | ±5% | 86.20% | ≤3s | ||
10.1-11.0 | 0.01-2.18 | 24 | 150 | ±5% | 87.00% | ≤3s | ||
11.1-12.0 | 0.01-2.00 | 24 | 150 | ±5% | 87.00% | ≤3s | ||
12.1-13.0 | 0.01-1.84 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
13.1-14.0 | 0.01-1.71 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
14.1-15.0 | 0.01-1.60 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
15.1-16.0 | 0.01-1.50 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
16.1-17.0 | 0.01-1.41 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
17.1-18.0 | 0.01-1.33 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
18.1-19.0 | 0.01-1.26 | 24 | 200 | ±5% | 87.00% | ≤3s | ||
19.1-20.0 | 0.01-1.20 | 24 | 240 | ±5% | 87.00% | ≤3s | ||
20.1-21.0 | 0.01-1.14 | 24 | 240 | ±5% | 87.00% | ≤3s | ||
21.1-22.0 | 0.01-1.09 | 24 | 240 | ±5% | 87.00% | ≤3s | ||
22.0-23.0 | 0.01-1.04 | 24 | 240 | ±5% | 87.00% | ≤3s | ||
23.1-24.0 | 0.01-1.00 | 24 | 240 | ±5% | 87.00% | ≤3s | ||
45.1-46.0 | 0.01-0.52 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
46.1-47.0 | 0.01-0.51 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
47.1-48.0 | 0.01-0.50 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
48.1-49.0 | 0.01-0.49 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
49.1-50.0 | 0.01-0.48 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
50.1-51.0 | 0.01-0.47 | 24 | 300 | ±5% | 87.00% | ≤3s | ||
51.1-52.0 | 0.01-0.46 | 24 | 300 | ±5% | 87.00% | ≤3s |
Switching Adapter Plug UES24LU2-SPA Applications
The UES24LU2-SPA switching adapter plug is a versatile and high-performance solution, ideal for use as both a medical switching adapter and an AC adapter power supply for information equipment. Its compliance with communication and medical safety certifications ensures reliable and secure power delivery for critical applications.
Medical Applications
As a wall-mount power adapter, the UES24LU2-SPA is engineered to meet the stringent requirements of medical equipment. The inclusion of 2 MOPP isolation protection and a leakage current of ≤100μA provides enhanced safety, making it a trusted plug for power supply in medical environments. With DOE Level VI energy efficiency and standby power consumption of ≤0.075W, switching adapter plug UES24LU2-SPA minimizes energy waste while maintaining reliable operation. This medical switching adapter is perfect for powering devices such as:
- Medical diagnostic tools
- Portable monitors
- Healthcare communication systems
Information Equipment Applications
For information technology needs, this switching power supply plug delivers stable and efficient performance, making it an ideal choice for powering wall power supply systems in networking and communication applications. UE Electronic switching power supply plug's ability to operate reliably at altitudes up to 5000 meters ensures suitability for global use. Typical applications include:
- Network switches
- Data communication devices
- IT peripherals
The UES24LU2-SPA wall mount power supply is a compact, efficient, and safe choice for powering a wide range of medical and information equipment. With its robust design and adherence to international standards, it offers unmatched reliability as a wall power adapter for professional use.
1. What certifications does the UES24LU2-SPA switching adapter plug have?
The UES24LU2-SPA is compliant with communication and medical safety certifications, ensuring its suitability as a switching power supply plug for medical and information equipment.
2. Why is the UES24LU2-SPA ideal for medical applications?
This wall-mount power adapter features 2 MOPP isolation protection and a leakage current of ≤100μA, making it a reliable and safe choice for powering medical devices such as monitors and diagnostic tools.
3. What is the energy efficiency level of the UES24LU2-SPA?
The switching adapter plug meets DOE Level VI energy efficiency standards, ensuring that it operates as an efficient plug for power supply while reducing energy waste.
4. Can the UES24LU2-SPA operate at high altitudes?
Yes, this switching adapter plug is designed to work reliably at altitudes of up to 5000 meters, making it suitable for a wide range of environments.
5. How much power does the UES24LU2-SPA switching adapter plug consume in standby mode?
The AC adapter power supply has a standby power consumption of ≤0.075W, which ensures minimal energy use when the device it powers is not in active operation.
6. What types of devices is the UES24LU2-SPA suitable for?
The UES24LU2-SPA switching power supply plug is perfect for medical devices, such as portable monitors and defibrillators, as well as information equipment like networking gear and communication systems.
7. What safety features does the UES24LU2-SPA offer?
This medical switching adapter includes 2 MOPP isolation protection, ensuring it meets the rigorous safety requirements for medical applications. UE Electronic medical switching adapter also offers overvoltage and surge protection, safeguarding connected devices.
8. Can this switching adapter plug be used globally?
Yes, the UES24LU2-SPA is designed to support international applications, making it a versatile AC adapter power supply for medical and communication equipment worldwide.
