UES18LCP-SPA

The UES18LCP-SPA is a highly efficient and reliable adapter-switching power supply designed to meet the rigorous standards of communications, medical, and LED applications. The UE Electronic universal wall plug adapter design further enhances its adaptability for a wide range of devices and environments.

  • 符合通信、医疗和LED安全认证
  • 2 MOPP隔离保护
  • 接触电流  100μA
  • CoC V5 Tier 2
  • DOE六级能效
  • 待机功耗≤0.075W
  • 5-24V输出,最高18W
  • 工作海拨高度5000米
  • 配多种可换式AC 插脚
  • 涵盖短路保护、过压保护、过载保护
产品特性
输入电压90-264VAC工作温度0~45℃
输入电流 0.5A储存温度-20℃~60℃
工作海拔高度 5000m工作湿度10~90% RH, 非冷凝
待机功耗≤0.075W平均故障间隔时间>100,000hrs MIL-HDBK-217,在25℃环境温度下。
重量140g机械规格88.0(L)  30.0(W)  57.0(H)mm
应用场所适用于医疗、资讯、信息设备、LED类电源适配器安规标准

CB(IEC60601-1/ IEC62368-1/IEC60950-1)、UL(ANSI / AAMI ES60601-1/CAN / CSA-C22.2 NO.60601-1/UL60950-1)、TuV Rheinland-Mark(EN60601-1)、TüV Rheinland-GS( EN62368-1)、CCC(GB4943.1)、PSE(J62368)、RCM(AS/NZS60950.1)、CE(EN62368)、FCC(FCC PART 15)、KC( K60950-1)

型号

电压
(伏)

电流
(安培)

纹波
(最大)
mVpk-pk

电压公差

线性与负数调整率

平均效率

启动延迟时间















UES18LCP-XXXYYYSPA























5.0-6.0

0.01-3.00

200

±6%















线性调整率:±1%


负载调整率:±5%






















81.84%

≤3s

6.1-7.0

0.01-2.00

200

±5%

83.36%

≤3s

7.1-8.0

0.01-2.00

200

±5%

84.21%

≤3s

8.1-9.0

0.01-2.00

200

±5%

84.91%

≤3s

9.1-10.0

0.01-1.80

200

±5%

84.97%

≤3s

10.1-11.0

0.01-1.65

200

±5%

84.96%

≤3s

11.1-12.0

0.01-1.50

200

±5%

85.05%

≤3s

12.1-13.0

0.01-1.40

200

±5%

85.14%

≤3s

13.1-14.0

0.01-1.30

200

±5%

85.17%

≤3s

14.1-15.0

0.01-1.20

200

±5%

85.14%

≤3s

15.1-16.0

0.01-1.13

200

±5%

85.18%

≤3s

16.1-17.0

0.01-1.10

200

±5%

85.37%

≤3s

17.1-18.0

0.01-1.00

200

±5%

85.19%

≤3s

18.1-19.0

0.01-0.95

200

±5%

85.22%

≤3s

19.1-20.0

0.01-0.90

200

±5%

85.22%

≤3s

20.1-21.0

0.01-0.86

200

±5%

85.25%

≤3s

21.1-22.0

0.01-0.82

200

±5%

85.25%

≤3s

22.1-23.0

0.01-0.80

200

±5%

85.36%

≤3s

23.1-24.0

0.01-0.75

200

±5%

85.26%

≤3s

The UES18LCP-SPA is a versatile and reliable adapter-switching power supply designed for use in a wide range of applications, including medical, communication, and LED technologies. UE Electronic AC universal adapter meets essential safety certifications for these industries, ensuring both reliability and user safety.

Medical Application

The UES18LCP-SPA universal switching power adapter is fully compliant with medical safety standards, featuring 2 MOPP isolation protection and a touch current ≤ 100μA, making it suitable for medical equipment power supply. UE Electronic adapter switching power supply is designed to meet stringent medical safety certifications, ensuring safe and stable operation for medical devices that require continuous and reliable power. This makes it ideal for applications such as patient monitoring systems, medical diagnostic equipment, and other critical devices where reliability is paramount.

Information Equipment

In the realm of information technology, the UES18LCP-SPA universal switching power adapter excels by providing stable and efficient power to networking devices, communication equipment, and data transmission systems. This universal wall plug adapter’s DOE Level VI energy efficiency and standby power consumption of ≤0.075W make it highly energy-efficient, reducing power wastage and making it ideal for modern, eco-conscious setups. The universal switching power adapter’s wide output range of 5-24V up to 18W supports various communication equipment such as routers, switches, and other network devices, ensuring smooth operations in environments with high energy demands.

LED Power Adapters

The UES18LCP-SPA LED switching power supply is also designed for LED applications, making it an excellent choice for powering LED lighting systems, displays, and signage. With its 5-24V output range and short circuit protection, overvoltage protection, and overload protection, this LED power supply adapter guarantees the longevity and performance of LED systems. The interchangeable AC pin design allows the LED power adapter to be used globally, enhancing flexibility for various commercial, residential, and industrial lighting projects. This adaptability, along with the UE Electronic LED power adapter’s high safety standards and energy-efficient operation, makes it a top choice for powering LED displays and other related devices.

Overall, the UES18LCP-SPA is a versatile and highly efficient universal switching power adapter, capable of serving the needs of medical devices, information equipment, and LED systems across a variety of demanding environments.

1. What certifications does the adapter switching power supply UES18LCP-SPA comply with?

The UES18LCP-SPA is a reliable adapter switching power supply that meets various safety certifications, including those for communications, medical equipment, and LED power supply. UE Electronic universal switching power adapter ensures compliance with medical and industry safety standards, making it suitable for sensitive applications.

The UES18LCP-SPA universal switching power adapter is equipped with multiple protection features, such as:

  • Short circuit protection
  • Overvoltage protection
  • Overload protection

This makes it a safe and reliable power supply plug for critical devices like medical equipment power supply and LED-switching power supplies.

This LED power adapter offers an output voltage range from 5V to 24V, delivering up to 18W of power. Our LED power supply adapter is versatile enough to support applications in medical devices, communication equipment, and LED lighting systems, ensuring stable and efficient performance.

The UES18LCP-SPA universal switching power adapter boasts an impressive standby power consumption of ≤0.075W, ensuring energy efficiency. This is especially important in the universal wall plug adapter used for long-term applications in both medical power supplies and LED power supplies.

The UES18LCP-SPA can operate at an altitude of up to 5000 meters, making it an ideal universal wall plug adapter for high-altitude applications where other power supply options might fail.

The touch current of the UES18LCP-SPA adapter switching power supply is ≤100μA, making it a safe choice for medical equipment power supplies and other sensitive devices. This complies with the safety standards required for patient safety in medical environments.

The UES18LCP-SPA comes with an interchangeable AC pin design, making it a highly flexible AC universal adapter that can be used in different regions and applications. This allows you to easily adjust the power supply plug for various international standards.

The UES18LCP-SPA adapter switching power supply meets the DOE Level VI energy efficiency standards, ensuring that this universal switching power adapter operates at peak efficiency.

输入电压90-264VAC工作温度0~45℃
输入电流 0.5A储存温度-20℃~60℃
工作海拔高度 5000m工作湿度10~90% RH, 非冷凝
待机功耗≤0.075W平均故障间隔时间>100,000hrs MIL-HDBK-217,在25℃环境温度下。
重量140g机械规格88.0(L)  30.0(W)  57.0(H)mm
应用场所适用于医疗、资讯、信息设备、LED类电源适配器安规标准

CB(IEC60601-1/ IEC62368-1/IEC60950-1)、UL(ANSI / AAMI ES60601-1/CAN / CSA-C22.2 NO.60601-1/UL60950-1)、TuV Rheinland-Mark(EN60601-1)、TüV Rheinland-GS( EN62368-1)、CCC(GB4943.1)、PSE(J62368)、RCM(AS/NZS60950.1)、CE(EN62368)、FCC(FCC PART 15)、KC( K60950-1)

型号

电压
(伏)

电流
(安培)

纹波
(最大)
mVpk-pk

电压公差

线性与负数调整率

平均效率

启动延迟时间















UES18LCP-XXXYYYSPA























5.0-6.0

0.01-3.00

200

±6%















线性调整率:±1%


负载调整率:±5%






















81.84%

≤3s

6.1-7.0

0.01-2.00

200

±5%

83.36%

≤3s

7.1-8.0

0.01-2.00

200

±5%

84.21%

≤3s

8.1-9.0

0.01-2.00

200

±5%

84.91%

≤3s

9.1-10.0

0.01-1.80

200

±5%

84.97%

≤3s

10.1-11.0

0.01-1.65

200

±5%

84.96%

≤3s

11.1-12.0

0.01-1.50

200

±5%

85.05%

≤3s

12.1-13.0

0.01-1.40

200

±5%

85.14%

≤3s

13.1-14.0

0.01-1.30

200

±5%

85.17%

≤3s

14.1-15.0

0.01-1.20

200

±5%

85.14%

≤3s

15.1-16.0

0.01-1.13

200

±5%

85.18%

≤3s

16.1-17.0

0.01-1.10

200

±5%

85.37%

≤3s

17.1-18.0

0.01-1.00

200

±5%

85.19%

≤3s

18.1-19.0

0.01-0.95

200

±5%

85.22%

≤3s

19.1-20.0

0.01-0.90

200

±5%

85.22%

≤3s

20.1-21.0

0.01-0.86

200

±5%

85.25%

≤3s

21.1-22.0

0.01-0.82

200

±5%

85.25%

≤3s

22.1-23.0

0.01-0.80

200

±5%

85.36%

≤3s

23.1-24.0

0.01-0.75

200

±5%

85.26%

≤3s

Additional information

产品对比
相关产品
型号
输出电压
输出电流
功率
应用行业
数据表
对比
UE05LC3-SPA 5V/6V 0.01-1.0A 5W 医疗/通信行业
UE05L-SPAV 5V/6V 0.01-1.00A 5W 医疗/通信行业
UE05LZ4-SPA/UE05LZ5-SPA 5V 0.01-1.0A 5W 医疗/通信行业
UES05LZ6-SPA 5V/6V 0.01-1.0A 5W 医疗/通信行业
UE05LCP-SPA 5V/6V 0.01-1.00A 5W 医疗/通信行业

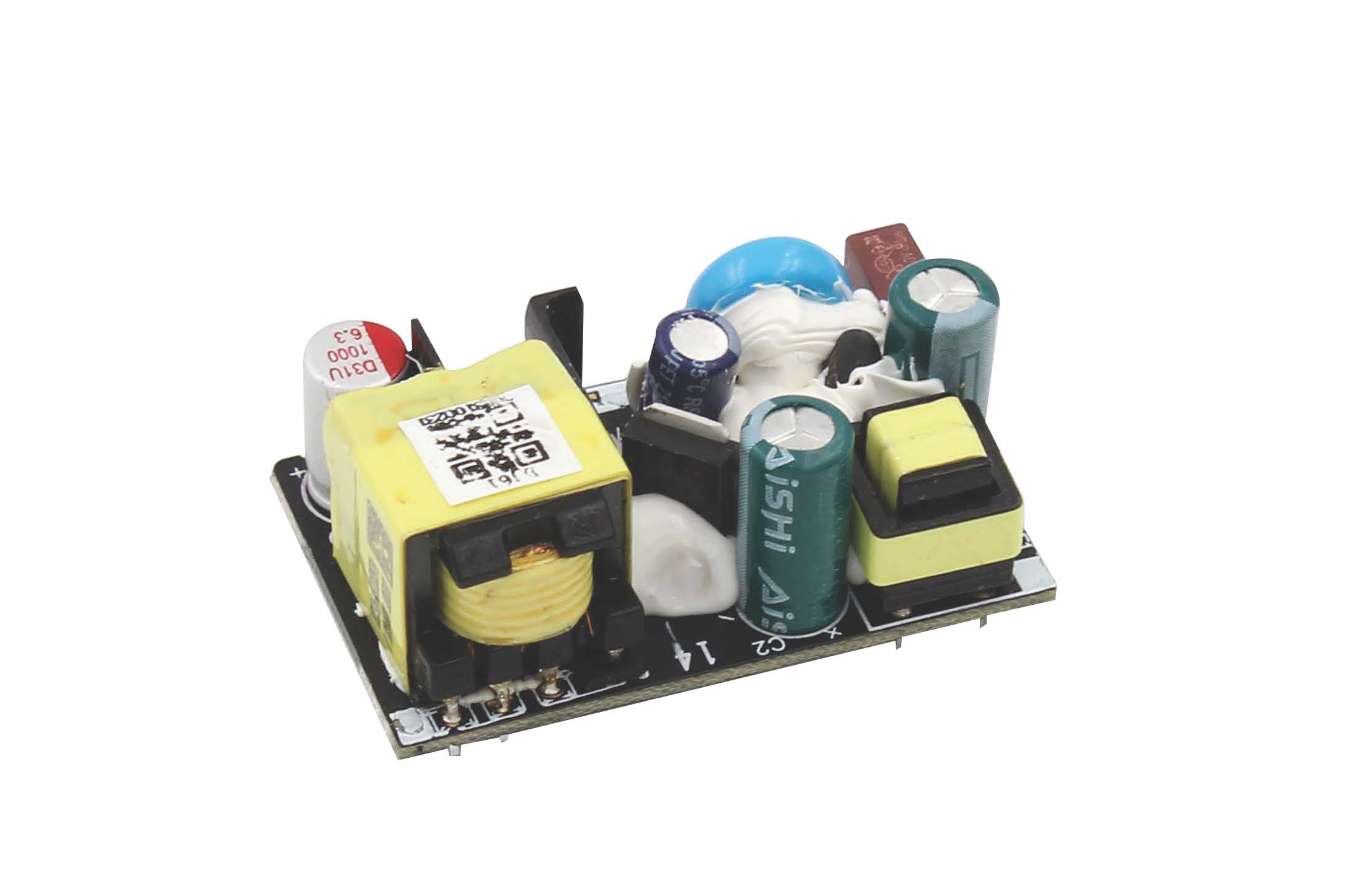

UES06-SPA-OP 5.25V 0.01-1.2A 6W 通信行业
