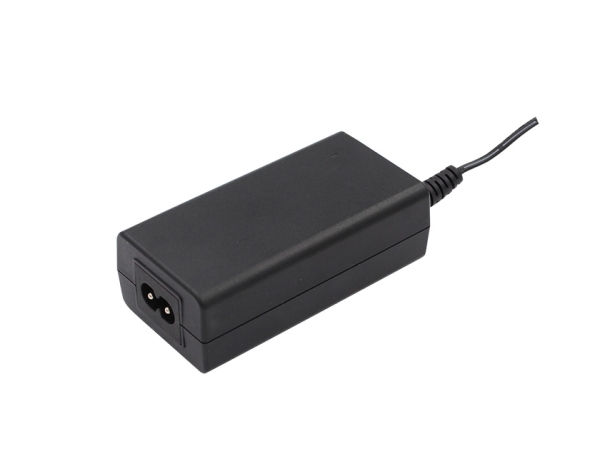

UES12D1-SPA500m
- 交流输入电压90-300VAC
- 涵盖短路保护、过流保护、过压保护、输入欠压保护
- 满足6KV浪涌抗扰度水平
- 符合第六级能源之星和CoC V5 Tier2(2016)
产品特性
输入电压 | 90-300VAC | 工作温度 | -40~55℃ |
输入电流 | 500mA | 储存温度 | -40~70℃ |
输出电压范围 | ±5% | 湿度 | 非浓缩条件下,湿度5%~95% |
待机功耗 | 0.075W Max | 平均故障间隔时间 | 在25℃环境温度下,最大负载工作平均无故障时间100,000小时(根据MIL-HDBK-217标准) |
重量 | 116g | 机械规格 | 90mm (L) 46mm (W) 30mm (H) |
应用场所 | 适用于资讯、信息设备类电源适配器 | 安规标准 | CCC(GB4943.1)、CE(EN62368-1)、CB(IEC62368-1)、BSMI(CNS14336-1) |
型号 | 电压(V) | 电流(A) | 纹波(mV) | 115 230 | 平均效率(%)Min |
UES12D1-120YYYSPA | 12.0 | 0.01-1.00 | 120 | Y Y | 83.26 |
