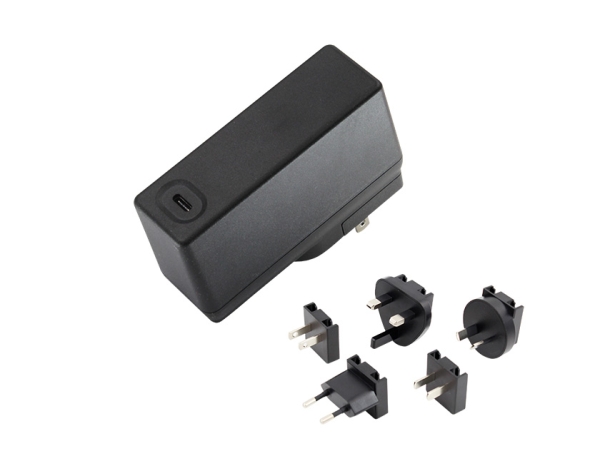

UES60LCP-200300SPC

The UES60LCP-200300SPC is a high-performance power supply charger designed for medical and communication applications. This UE Electronic portable device charger is a reliable and versatile solution for powering medical devices, electronic gadgets, and more.

  • 符合通讯,医疗安全认证
  • 2 MOPP隔离保护
  • 漏电流 ≤ 100μA
  • DOE效率等级VI
  • 待机功耗≤0.15W
  • 工作海拨高度5000米
  • 5V 到20输出,最高60W
  • 支持USB PD3.0快充协议
产品特性
输入电压90-264VAC工作温度0~40℃
输入电流1.3A储存温度-40~80℃
平均效率DOE VI & CoC V5 Tier2(2016)湿度非浓缩条件下,湿度10%~90%
待机功耗0.15W MAX平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间100,000小时(根据 MIL-HDBK-217标准)
重量180g机械规格97.0(L)  63.5(W)  33.5(H)mm
应用场所适用于医疗器械,手机和掌上电脑等便携设备充电安规标准

CE(EN62368-1)、NRTL(UL62368-1)、NOM(NOM-001-SCFI-2018)、CB(IEC60601-1/IEC62368-1)、CCC(GB4943.1)、FCC(PART 15)、BSMI(CNS14336-1)、 RCM(AS/NZS62368.1)、PSE(J62368-1)、TUV-GS(EN62368-1)、UL(ANSI/AAMI ES60601-1 CAN/CSA-C22.2NO.60601-1)、TUV-SUD/Mark(EN60601-1)

型号电压(V)电流(A)纹波(mVpk-pk)
115 230
平均效率
(%)Min
UES60LCP-200300SPC5.00.01-3.00150Y   Y81.39
9.00.01-3.00150Y   Y86.62
12.00.01-3.00150Y   Y87.40
15.00.01-3.00150Y   Y87.73
20.00.01-3.00150Y   Y89.00

The UES60LCP-200300SPC is a high-performance power supply charger ideal for medical and communication applications.

  • Medical Applications

As a medical charger, UES60LCP-200300SPC complies with strict safety certifications and features 2 MOPP isolation protection, ensuring reliable and safe operation for sensitive medical devices. With ultra-low leakage current (≤ 100 µA), UE Electronic power supply charger UES60LCP-200300SPC is ideally suited for powering critical equipment such as monitors, portable diagnostic tools, and other electronic devices in hospitals, clinics, or home environments.

  • Communication Applications

This UE Electronic USB charger power is designed to meet the demanding needs of communication devices, delivering 5V to 20V output and up to 60W power. Supporting the USB PD3.0 fast charging protocol, UES60LCP-200300SPC functions as a power fast charger for communication tools, ensuring quick and efficient operation. Our charger for electronic devices’s high-altitude capability (up to 5000 meters) makes it ideal for remote communication setups.

  • General Use

As a versatile portable device charger, the UES60LCP-200300SPC combines DOE Level VI energy efficiency with low standby power consumption (≤ 0.15W). UES60LCP-200300SPC can be used as a 12V charger power supply for various gadgets, the fastest USB phone charger, or a charger for electronic devices, making it an eco-friendly and reliable solution for both professional and everyday use.

1. What types of devices can the UES60LCP-200300SPC charge?

The UES60LCP-200300SPC is a versatile power supply charger suitable for medical equipment, mobile phones, PDAs, and other portable electronic devices. It functions as a reliable medical charger, a USB charger power supply, and a power fast charger for a variety of applications.

Yes, this power supply charger complies with medical safety certifications, including IEC60601-1 and UL60601-1. It features 2 MOPP isolation protection and leakage current ≤ 100 µA, making it a trusted medical charger for sensitive devices.

Absolutely! The UES60LCP-200300SPC supports the USB PD3.0 fast charging protocol, delivering up to 60W of power across a 5V to 20V output range. It is ideal for use as the fastest USB phone charger or a high-speed charger for electronic devices.

This USB charger power supply meets DOE Level VI and CoC V5 Tier 2 efficiency standards. It has a low standby power consumption of ≤ 0.15W, ensuring it is eco-friendly and energy-efficient.

Yes, the power supply charger is compact and lightweight, with dimensions of 97.0 × 63.5 × 33.5 mm and a weight of just 180g. Its portability makes it an excellent portable device charger for professionals and consumers on the go.

The UES60LCP-200300SPC is designed to operate reliably at altitudes up to 5000 meters, making it a suitable charger for electronic devices in high-altitude environments.

This power supply charger has a mean time between failures (MTBF) of 100,000 hours at an ambient temperature of 25°C. Its robust design ensures durability and reliability for extended use.

Yes, the power supply charger operates in temperatures ranging from 0°C to 40°C and can be stored in temperatures from -40°C to 80°C. It also handles humidity levels of 10% to 90% under non-condensing conditions.

输入电压90-264VAC工作温度0~40℃
输入电流1.3A储存温度-40~80℃
平均效率DOE VI & CoC V5 Tier2(2016)湿度非浓缩条件下,湿度10%~90%
待机功耗0.15W MAX平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间100,000小时(根据 MIL-HDBK-217标准)
重量180g机械规格97.0(L)  63.5(W)  33.5(H)mm
应用场所适用于医疗器械,手机和掌上电脑等便携设备充电安规标准

CE(EN62368-1)、NRTL(UL62368-1)、NOM(NOM-001-SCFI-2018)、CB(IEC60601-1/IEC62368-1)、CCC(GB4943.1)、FCC(PART 15)、BSMI(CNS14336-1)、 RCM(AS/NZS62368.1)、PSE(J62368-1)、TUV-GS(EN62368-1)、UL(ANSI/AAMI ES60601-1 CAN/CSA-C22.2NO.60601-1)、TUV-SUD/Mark(EN60601-1)

型号电压(V)电流(A)纹波(mVpk-pk)
115 230
平均效率
(%)Min
UES60LCP-200300SPC5.00.01-3.00150Y   Y81.39
9.00.01-3.00150Y   Y86.62
12.00.01-3.00150Y   Y87.40
15.00.01-3.00150Y   Y87.73
20.00.01-3.00150Y   Y89.00

Additional information

应用领域

充电器, 医疗相关, 通信相关

相关产品
型号
输出电压
输出电流
功率
应用行业
数据表
对比
UES45LCP/UES45LCP1-SPC 5V/9V/12V/15V/20V 0.01-3.00A 45W 充电器
UES45LZ2-SPC 5V/9V/12V/15V/20V 0.01-3A 45W 消费类

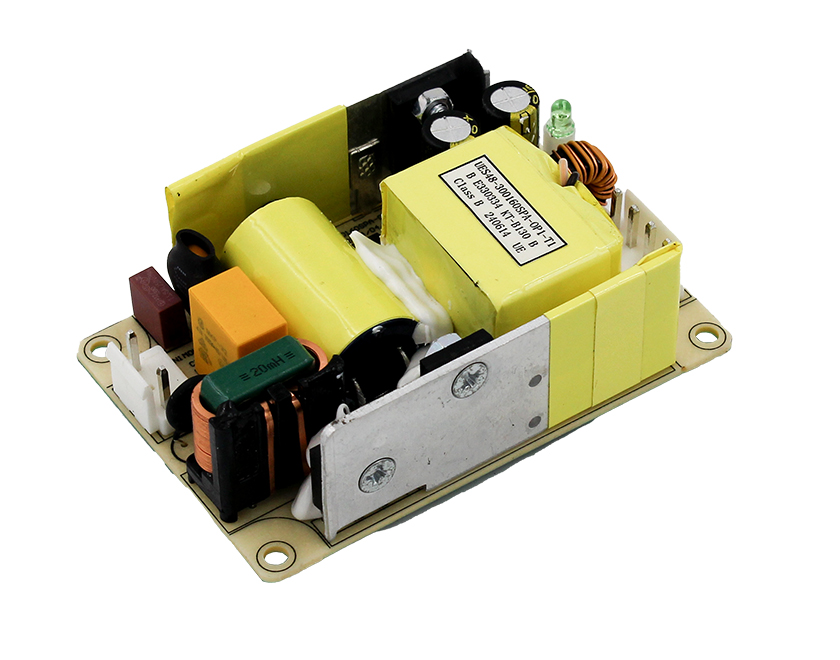

UES48-SPA-OP1 24-36V 0.01-2.00A 48W 医疗行业

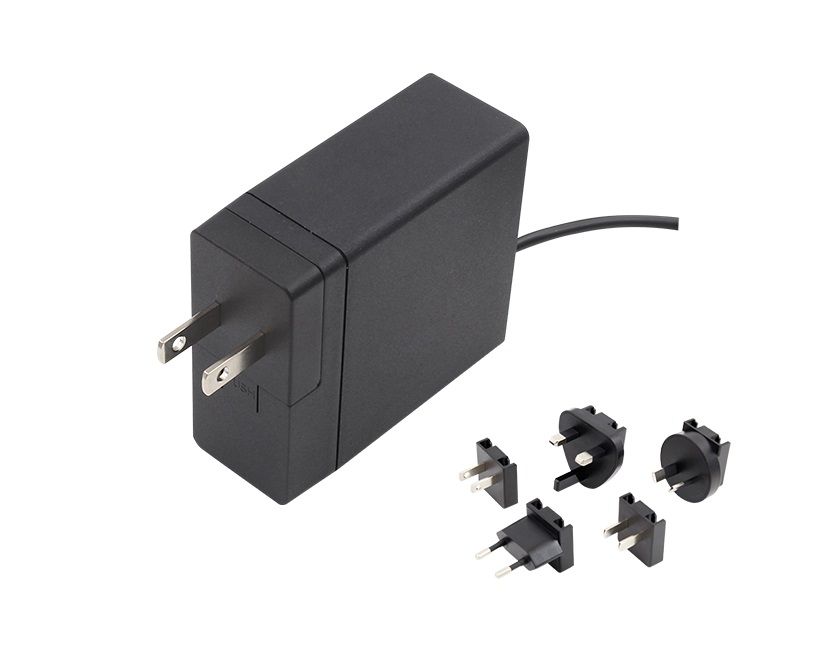

UES48LCP-SPA 12-24V 0.01-3.69A 48W 医疗行业
UES48-SPAZ 9-54V 0.01-4.50A 48W 医疗/通信行业
UES48DZ-SPA 9-36V 0.01-4.00A 48W 医疗/通信行业

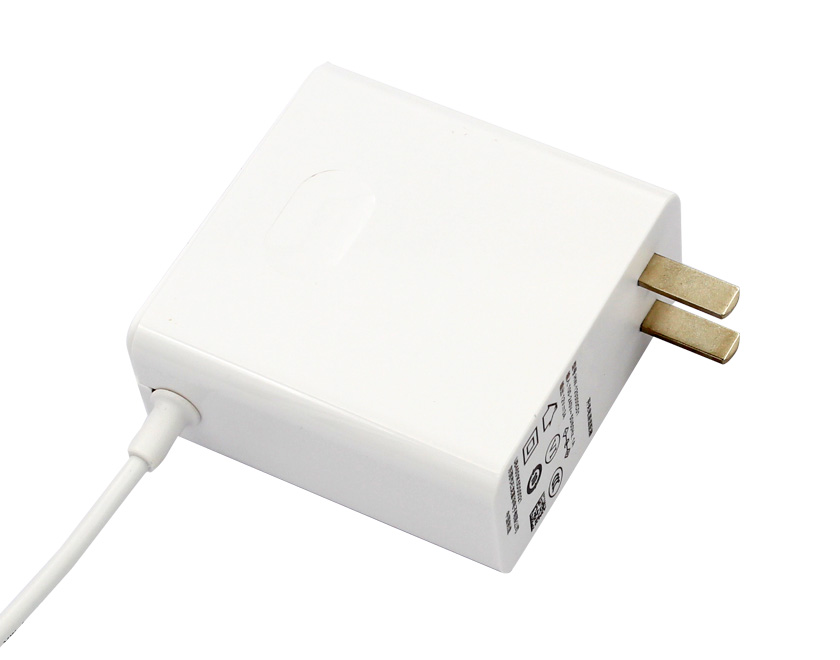

UES48LZ-SPA 12V 0.01-4.00A 48W 医疗/家电行业

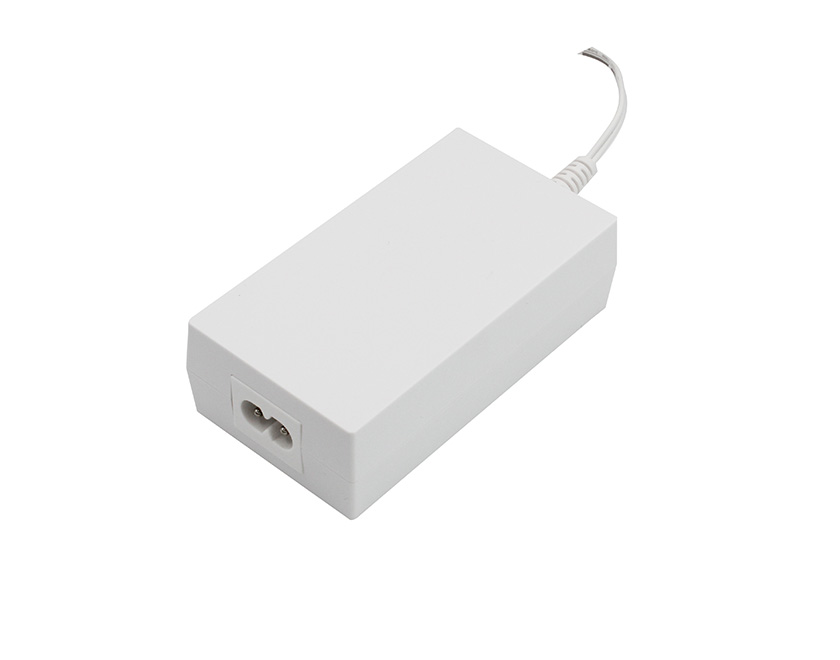

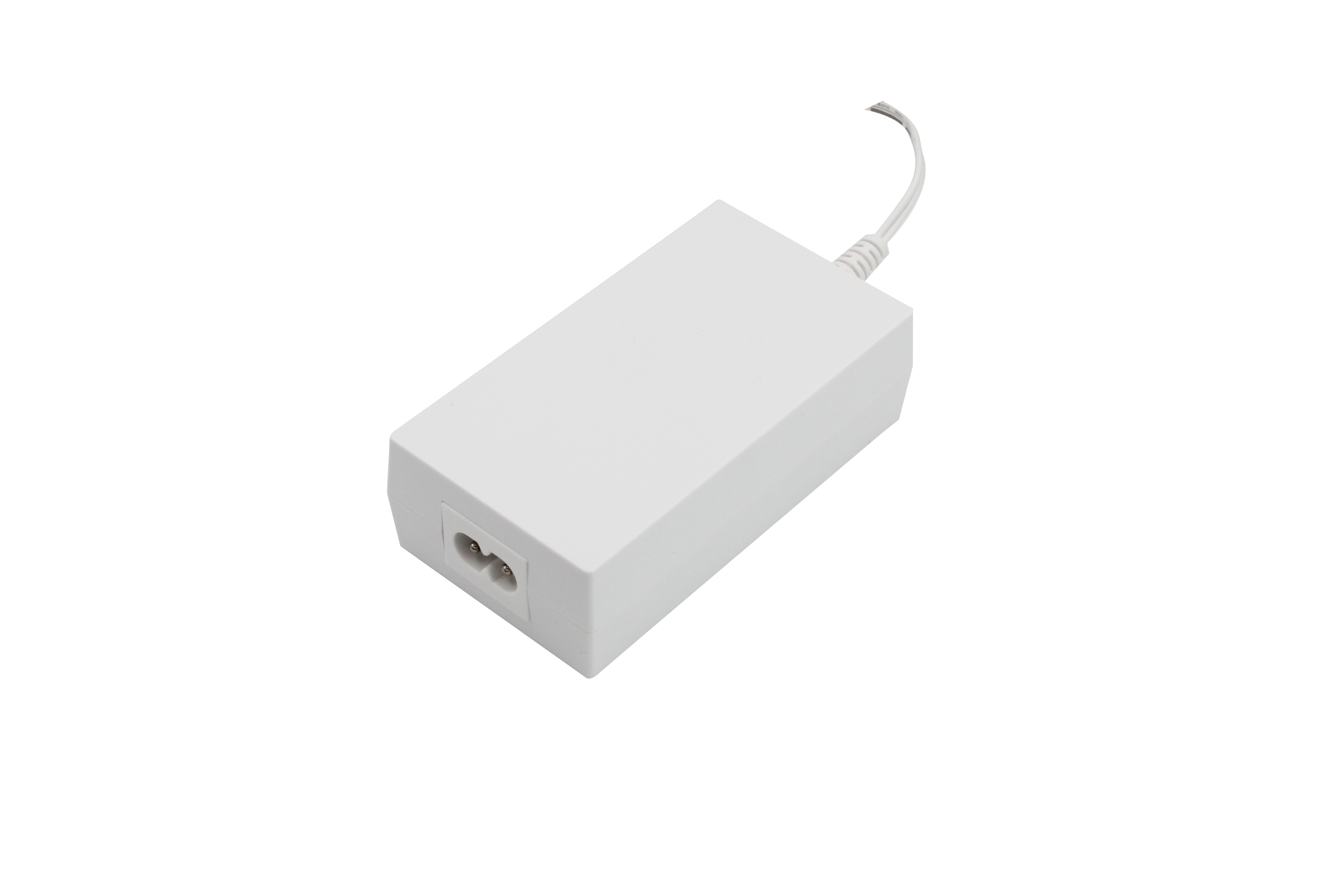

UES50D1-SPA 54V/56V 0.01-0.90A 50W 通信行业
UES50D1-SPA 50.0-56.0V 0.01-0.90A 50W 通信行业

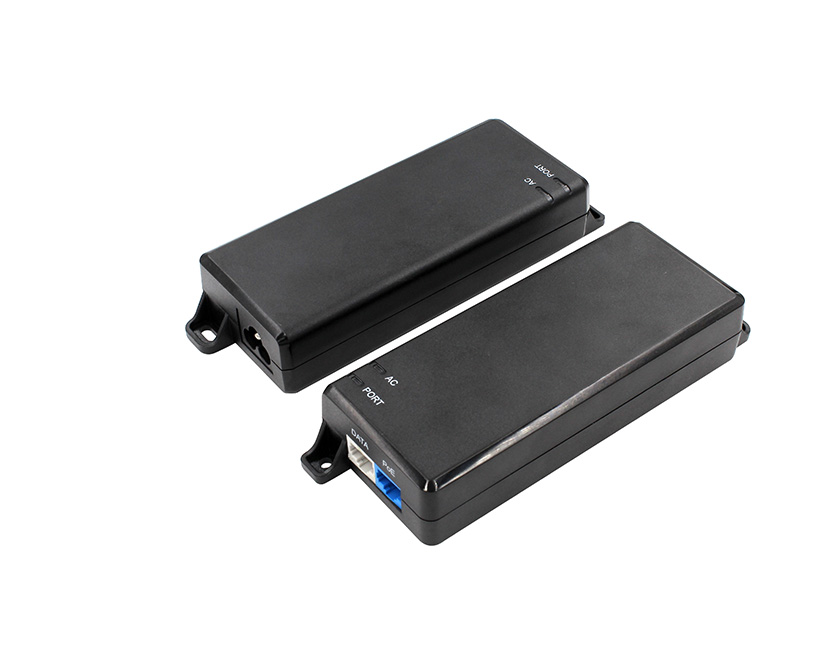

POE54DZ-540100 48V/54V 0.01-1.0A 54W PoE
UES60LCP-200300SPC 5V/9V/12V/15V/20V 0.01-3.00A 60W 充电器
UES60D1-200300SPC 5V/9V/12V/15V/20V 0.01-3.00A 60W 充电器

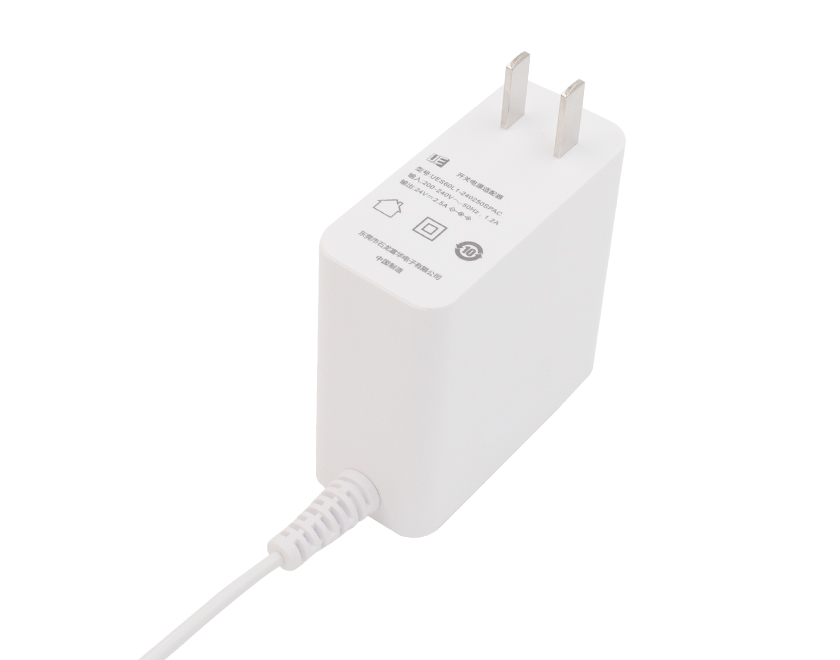

UES60L1-SPAC 24V 0.01-2.50A 60W 医疗/家电行业
