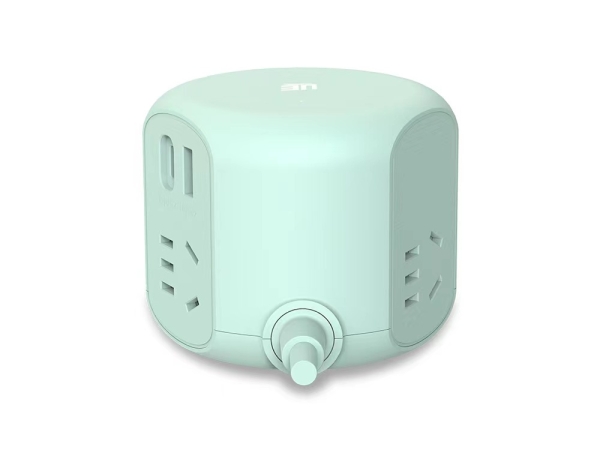

UEP35Y322XXX

AC input voltage range 180-264VAC
3 standard 2+3 combination AC jacks
2 standard Type-C output ports; 2 USB-A output ports;
Covers output short circuit protection, overcurrent protection, overvoltage protection, and overtemperature protection
Type-C1 output port supports PD3.0, PPS, QC3.0, QC2.0 and other fast charging protocols
The USB-A output port supports DCP, APPLE2.1A and other protocols
To ensure safety, a master control switch is set to control on and off with one click.
Intelligent power distribution when multiple devices are used simultaneously

Input voltage	180~264VAC	Operating temperature	0 ~ 25 ℃
Input Current	1A	Storage temperature	-40 ~ 80℃
Output voltage range	± 5%	Working humidity	Under non-concentrated conditions, humidity 5%~90%
weight	About 360g	mean time between failures	At an ambient temperature of 25°C, the mean time between failures at maximum load is 100000 hours (according to MIL-HBDK-217 standard)
Application places	Suitable for charging mobile phones, laptops, smart watches, headphones, speakers and other portable devices	Mechanical specifications	84.0(L) 80.0(W) 67.0(H)mm
		Safety standards	Meet CCC(GB4943.1), CCC(GB/T 2099.1), CCC(GB/T 1002), CCC(GB 2099.7)

other information

model

Output Voltage

Output Current

power

Application industry

Data sheet

Compared

UEP35Y322XXX 5V/9V/12V/15V/20V 0.01-3A 35W Consumer
