UES12LCP-SPA/UES12LCP-SPC
The UES12LCP-SPA series is a compact external power solution designed with a universal AC charger adapter structure for stable AC-DC conversion. It supports applications requiring power supply for medical industry and systems integrating a battery charging power module. As one of the experienced medical power supply manufacturers, UE Electronic ensures product reliability through a complete EMC laboratory and full verification equipment, making it suitable for diversified commercial and medical equipment.
- 符合通讯，医疗安全认证
- 2 MOPP隔离保护
- 符合医疗设备达BF(∧)级别
- 漏电流 ≤ 10μA
- 能效 DOE efficiency 六级
- CoC V5 Tier 2(2016)
- 待机功耗≤0.075W
- 工作海拨高度5000米
- 4V至24V输出, 最高12W

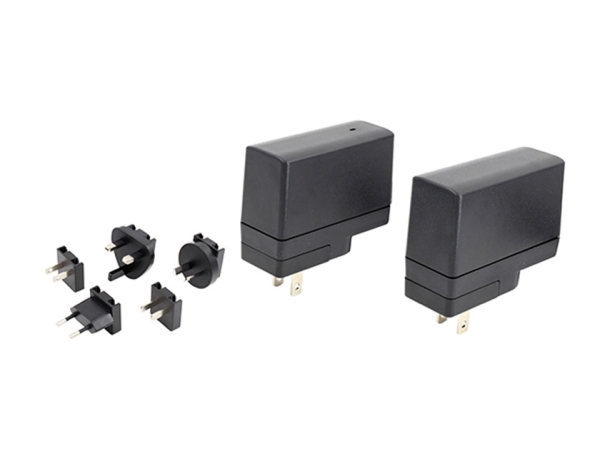

- 配多种可换式AC插脚
- 具备恒流和转换等功能，可做电池充电器
- 涵盖短路保护、过压保护、过载保护;
产品特性
| 输入电压 | 90-264VAC | 工作温度 | -5〜45 ℃ | ||
| 输入电流 | 0.5A | 储存温度 | -25〜75℃ | ||
| 输出电压范围 | ±5% | 工作湿度 | 10〜90％RH, 无冷凝 | ||
| 存储湿度 | 5~90% RH | 平均故障间隔时间 | > 100,000小时MIL-HDBK-217，在25℃环境温度下。 | ||
| 重量 | 约120g | 机械规格 | 76.0(L) 30.3(W) 48.2(H)mm | ||
| 应用场所 | 适用于医疗、I.T.E.设备类电源适配器 | 安规标准 | CCC( GB4943.1)、CB(IEC60601-1/IEC60950-1/IEC62368-1)、TUV-Mark(EN60601-1/EN62368-1 )、TUV Rheinland-GS(EN623368-1) 、PSE(J62368)、KC(K60950-1)、FCC(FCC PART15)、UL(ANSI / AAMI ES60601-1 /UL62368-1/CAN / CSA-C22.2 NO.60601-1/CAN/CSA C22.2 NO.60950-1/UL60950-1 )、CE(EN62368-1)、RCM( AS/NZS 60950.1) | ||
| 型号 | 电压 | 电流 | 纹波及噪音 | 电压公差 | 线性与负载 | 平均效率 | 启动延迟时间 |
| （V） | （A） | （最大） | 调整率 | ||||
| 4.0-5.0 | 0.01-2.00 | 150 | ±7% |
| 79.01% | ≤3s |
| 5.1-6.0 | 0.01-2.00 | 150 | ±7% |
| 80.19% | ≤3s |
| 6.1-7.0 | 0.01-1.71 | 150 | ±7% |
| 83.30% | ≤3s |
| 7.1-8.0 | 0.01-1.50 | 150 | ±7% |
| 83.30% | ≤3s |
| 8.1-9.0 | 0.01-1.33 | 150 | ±5% |
| 83.30% | ≤3s |
| 9.1-10.0 | 0.01-1.20 | 150 | ±5% |
| 83.30% | ≤3s |
| 10.1-11.0 | 0.01-1.09 | 150 | ±5% |
| 83.30% | ≤3s |
| 11.1-12.0 | 0.01-1.00 | 150 | ±5% |
| 83.30% | ≤3s |
UES12LCP-XXXYYYSPA | 12.1-13.0 | 0.01-0.94 | 200 | ±5% | 线性调整率:±1% | 83.30% | ≤3s |
UES12LCP-XXXYYYSPA-OP | 13.1-14.0 | 0.01-0.86 | 200 | ±5% | 负载调整率:±5% | 83.30% | ≤3s |
UES12LCP-XXXYYYSPC | 14.1-15.0 | 0.01-0.80 | 200 | ±5% |
| 83.30% | ≤3s |
UES12LCP-XXXYYYSPC-OP | 15.1-16.0 | 0.01-0.75 | 200 | ±5% |
| 83.30% | ≤3s |
| 16.1-17.0 | 0.01-0.71 | 200 | ±5% |
| 83.30% | ≤3s |
| 17.1-18.0 | 0.01-0.67 | 200 | ±5% |
| 83.30% | ≤3s |
| 18.1-19.0 | 0.01-0.63 | 200 | ±5% |
| 83.30% | ≤3s |
| 19.1-20.0 | 0.01-0.60 | 200 | ±5% |
| 83.30% | ≤3s |
| 20.1-21.0 | 0.01-0.57 | 200 | ±5% |
| 83.30% | ≤3s |
| 21.1-22.0 | 0.01-0.55 | 200 | ±5% |
| 83.30% | ≤3s |
| 22.1-23.0 | 0.01-0.52 | 200 | ±5% |
| 83.30% | ≤3s |
| 23.1-24.0 | 0.01-0.50 | 200 | ±5% |
| 83.30% | ≤3s |
Comprehensive Application Coverage
The UES12LCP-SPA series supports systems using a universal AC charger adapter, providing stable output for power supply for medical industry, portable devices, and general electronic equipment. The product is built on UE Electronic’s expertise in AC-DC adaptation and verification testing.
Medical Applications
Meeting medical equipment BF(^) level standards, operating at 10-90% RH (non-condensing), this product is designed for equipment from leading medical power supply manufacturers, the product provides clean output compatible with power battery charger systems.
Communication Applications
With low standby power consumption (≤0.075W) and an operating altitude of 5000 meters, this adapter supports communication devices requiring efficient external supply and can operate within systems integrating power inverter with battery charger functions.
General Use
Compatible with universal power supply adapter requirements, and equipped with features such as constant current and conversion, the product applies to consumer electronics, small instruments and portable tools where reliable AC-DC conversion is required.
Q1. What is the UES12LCP-SPA, and what are its primary applications?
A: The UES12LCP-SPA is a 12W wall-mount type, medical-grade universal AC power supply adapter. It is designed as a reliable power supply for the medical industry, suitable for devices like patient monitors, diagnostic equipment, and portable therapeutic devices. It also serves as an ITE (Information Technology Equipment) compliant power source for communication and industrial electronics.
Q2. What makes it a "universal" power adapter?
A: Its “universal” feature comes from two key aspects. First, it has a wide AC input range (90-264VAC), allowing it to work with power grids worldwide. Second, it comes with multiple interchangeable AC plugs (like US, EU, UK types), making it a truly flexible universal AC charger adapter for global markets.
Q3. Can the UES12LCP-SPA be used for charging batteries?
A: Yes. The adapter features constant current (CC) and constant voltage (CV) modes, which are essential for safe and effective charging. This makes it an excellent choice as a dedicated power battery charger for the internal batteries of medical or portable devices, contributing to battery charging power systems.
Q4. What key safety certifications does it hold for medical use?
A: As a product from reputable medical power supply manufacturers, it carries full medical safety certifications. These include compliance with IEC 60601-1, ANSI/AAMI ES60601-1 (UL), and EN 60601-1 (TUV). It also provides critical 2 MOPP (Means of Patient Protection) isolation to ensure user safety.
Q5. What are the critical safety and performance specifications?
A: Key specifications include a very low leakage current (≤10µA), which is vital for patient-connected devices. It has high energy efficiency (DoE Level VI and CoC Tier 2), ultra-low standby power (≤0.075W), and can operate at high altitudes up to 5000 meters.
Q6. What is its output voltage and current range?
A: It offers a wide adjustable DC output range from 4V to 24V, with a maximum power of 12W. For example, it can provide 5V at 2A, 12V at 1A, or 24V at 0.5A, making this universal power supply adapter versatile for different device requirements.
Q7. What protection features are built into the adapter?
A: To protect both itself and the connected device, it includes comprehensive protections against output short circuits, overload, and over-voltage conditions.
Q8. What are its physical dimensions and operating temperature?
A: The adapter is compact, measuring 76mm (L) x 30.3mm (W) x 48.2mm (H). It is designed to operate within a temperature range of -5°C ~ 45°C.
Q9. Is the UES12LCP-SPA the same as a power inverter with a battery charger?
A: No, they are different. This product is an AC-DC power adapter. It converts AC mains power to low-voltage DC to power devices or charge batteries. A power inverter with battery charger typically does the opposite: it uses a battery to generate AC power output, often for backup purposes.
Q10. How does it ensure reliability for critical medical equipment?
A: Beyond certifications, reliability is ensured through robust design for harsh environments (high altitude, wide temperature range) and multiple built-in electrical protections. Products from experienced medical power supply manufacturers like UE Electronic undergo strict production and testing processes to guarantee this reliability.
