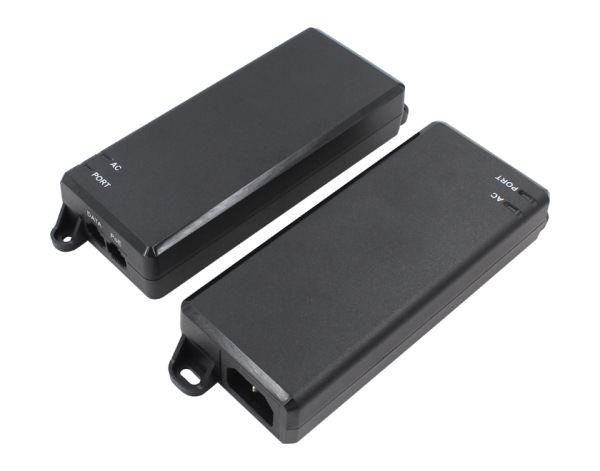

PoE35-560062
POE35-560062 is a compact and stable PoE adapter designed for efficient power and data delivery. With UE Electronic’s over 30 years manufacturing experience, full EMC laboratory capability, and comprehensive testing systems, the product ensures consistent performance across various network environments. It supports functions of the PoE power adapter, delivering reliable PoE adapter power for IP cameras, terminals, and IoT devices. Compatible with multiple PoE adapters and PoE AC adapter scenarios, it integrates smoothly with communication systems requiring stable network adapter and PoE switch power supply interfaces.
- 交流输入电压90-290VAC
- 涵盖短路保护、过流保护、过压保护
- 符合IEEE802.3af/at协议
- 平均能效≥85%
- 支持10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/以太网传输
- 满足6KV浪涌抗扰度水平
产品特性
| 输入电压 | 90-290VAC | 工作温度 | -25~50℃ |
| 输入电流 | 1.0A | 储存温度 | -40~85℃ |
| 输出电压范围 | ±5% | 工作湿度 | 非浓缩条件下，湿度5%-95% |
| 重量 | 205g | 平均故障间隔时间 | 在25℃环境温度下，最大负载工作平均无故障时间500,000小时(根据Telcordia SR332标准) |
| 应用场所 | 适用于IP电话，无线AP，POS设备、可编程摄像头等网络设备供电 | 机械规格 | 171.0 (L) 62.0(W) 31.0(H)mm |
| 安规标准 | CE(EN62368-1)、cULus(UL62368-1)、CB/EAC/PSB(IEC62368-1)、CCC(GB4943.1)、KC(K62368-1)、RCM(AS/NZS62368.1)、BSMI(CNS14336-1)、PSE(J62368-1)、BIS(IEC60950-1)、NOM(NOM-001-SCFI-2018) |
| 型号 | 电压(V) | 电流(A) | 纹波(mV) |   115 230 | 平均效率 （%）Min |
|---|---|---|---|---|---|
| PoE35-560062 | 56.0 | 0.01-0.62 | 200 | Y Y | 85.00 |
General Overview
The PoE35-560062 is a versatile and robust PoE power adapter designed to provide stable Power over Ethernet (PoE) delivery for network devices requiring simultaneous data transmission and power. Designed with a wide AC input range of 90-290VAC for global compatibility and backed by rigorous quality control and comprehensive EMC testing, this unit is built for reliability in diverse PoE network environments. Its compact design (171.0×62.0×31.0mm) and light weight (205g) allow for easy integration or placement, making it an ideal external PoE switch power supply solution.
Communication Applications
This ethernet PoE adapter is ideal for a wide range of communication equipment, including IP phones, wireless access points (APs), POS systems, and programmable IP cameras. Compliant with the IEEE 802.3af/at PoE standard, it ensures protocol-level compatibility and consistent output when paired with other PoE infrastructure. Its capability to support network speeds from 10Mbps up to 5Gbps makes it future-proof for high-bandwidth applications, providing a reliable poe adapter power source for critical network nodes and IoT deployments.
Performance and Reliability
As a high-performance PoE AC adapter, it offers an average energy efficiency of ≥85% and delivers a stable 56V output. To ensure maximum uptime and protect connected equipment, it incorporates multiple safeguards, including short circuit, over current and over voltage protection, and boasts a high 6KV surge immunity rating. The product’s exceptional reliability is quantified by a Mean Time Between Failures (MTBF) of 500,000 hours at full load (25°C ambient), as per the Telcordia SR-332 standard. It operates reliably within a broad temperature range of -25°C to 50°C, suitable for various installation environments.
General Use & Compliance
Applicable in security systems, industrial automation, smart buildings and commercial electronics, this adapter PoE simplifies network adapter integration and PoE adapters deployment. It holds a comprehensive set of international safety certifications, including CE, cULus, CB, CCC, and KC, ensuring compliance and safety for global market deployment. This makes it a trustworthy and compliant choice for professional and commercial installations requiring dependable PoE power.
Q1. What is the PoE35-560062 and what are its main applications?
A: The PoE35-560062 is a PoE (Power over Ethernet) adapter, specifically a PoE power over ethernet adapter and PoE AC adapter. It is designed to supply power and data over a single Ethernet cable to network equipment such as IP phones, wireless access points (AP), POS terminals, and programmable cameras.
Q2. What PoE standard does this adapter comply with?
A: It complies with the IEEE 802.3af/at protocol, ensuring compatibility with a wide range of standard PoE-powered devices (PDs). This makes it a reliable and interoperable PoE adapter.
Q3. What are the key electrical specifications of this PoE power adapter?
A: It features a wide AC input range of 90-290VAC. Its output is 56V DC with a current range of 0.01-0.62A, delivering a total power of 35W. Its average energy efficiency is ≥85%.
Q4. What network speeds does this ethernet Poe adapter support?
A: This adapter PoE supports a wide range of Ethernet transmission speeds, including 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, and 5Gbps, ensuring compatibility with both current and future high-speed networks.
Q5. What safety and reliability features does it offer?
A: It includes short circuit, over current, and over voltage protection. It has a high immunity level of 6KV surge protection. Its reliability is rated with a mean time between failures (MTBF) of 500,000 hours at 25°C under maximum load.
Q6. What are the environmental specifications for operation?
A: This PoE power supply unit is designed to operate within a temperature range of -25°C to 50°C and can function in non-condensing humidity levels from 5% to 95%.
Q7. Does it hold any international safety certifications?
A: Yes, it holds a comprehensive set of global safety certifications, making it suitable for worldwide markets. These include CE, cULus, CB, CCC, KC, RCM, BSMI, PSE, BIS, and NOM, primarily meeting the IEC/EN/UL 62368-1 standard for IT and audio/video equipment.
Q8. How is it physically designed?
A: It is a compact and lightweight PoE adapters unit. Its mechanical dimensions are 171.0mm (L) x 62.0mm (W) x 31.0mm (H), and it weighs approximately 205g.
Q9. Can it be used as a replacement for a switch's internal power unit?
A: While it provides similar power conversion functionality, the PoE35-560062 is an external PoE adapter power unit. It is typically used as a mid-span device to add PoE capability to a network that lacks a PoE-enabled switch, rather than as an internal network adapter or component.
Q10. Is this device suitable for powering medical or industrial ITE equipment?
A: Its listed safety certifications (IEC 62368-1) are for Information Technology Equipment (ITE) and Audio/Video equipment. Therefore, it is ideal for standard ITE and network devices but not be certified for direct use in medical-grade applications unless specified otherwise in additional documentation.
