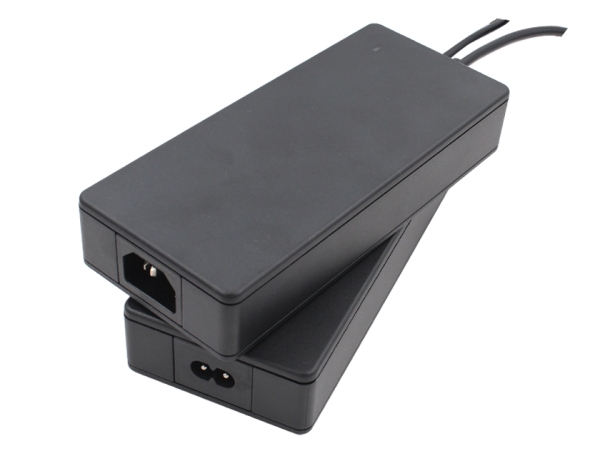

UES240DZ-XXXYYYSPA

The UES240DZ-SPA is a high-performance desktop power adapter designed for communication and medical equipment power supply applications. UE Electronic desktop switching power supply UES240DZ-SPA combines advanced GaN technology with superior safety features to deliver reliable and efficient power.

  • 符合通讯、医疗安全认证
  • 2 MOPP 隔离保护
  • 漏电流 ≤ 100μA
  • 符合七级能效
  • 工作海拨高度5000米
  • 待机功率≤ 0.15W
  • 11-54V输出,最高240W
  • 输入有4种AC插座形式
  • GaN技术
  • 符合家用医疗标准
  • 应用领域:急救设备、治疗一体机、医用显示器、B超、除颤监护仪等
产品特性
输入电压80-264VAC;(80-90VAC 参考降额曲线) 工作温度-30~70℃(40~70℃ 参考降额曲线)
输入电流3.5A,在100VAC 输入条件下储存温度-40~80℃
输出电压范围11-54V 湿度5~90% RH, 非冷凝
平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间100,000小时(根据MIL-HDBK-217标准)
重量650g机械规格168(L)  73(W)  31.5(H)mm
应用场所适用于医疗、信息设备类电源适配器安规标准
  • CB( IEC60601-1/ IEC60601-1-11)
  • UL(ANSI/AAMI ES60601-1/60601-1-11/CAN/CSA C22.2 NO.60601-1 )
  • TUV SUD/Mark(EN60601-1 /EN60601-1-11)
  • PSE(J62368-1)

型号电压电流瓦数

纹波及其噪音

电压公差

线性与负载调整率平均效率启动延迟时间
UES240DZ-XXXYYYSPAZ11.0-12.0 0.01-18.00216W150mVpk-pk±5%线性调整率: ±1%
负载调整率: ±5%


92.00%≤3s
12.1-13.0 0.01-16.60215W150mVpk-pk±5%92.00%≤3s
13.1-14.0 0.01-15.40215W150mVpk-pk±5%92.00%≤3s
14.1-15.0 0.01-14.40216W150mVpk-pk±5%92.00%≤3s
18.1-19.0 0.01-12.60239.4W150mVpk-pk±5%92.00%≤3s
19.1-20.0 0.01-12.00240W150mVpk-pk±5%93.00%≤3s
20.1-21.0 0.01-11.43240W150mVpk-pk±5%93.00%≤3s
21.1-22.0 0.01-10.90239.8W150mVpk-pk±5%93.00%≤3s
22.1-23.0 0.01-10.40239.2W150mVpk-pk±5%93.00%≤3s
23.1-24.0 0.01-10.00240W150mVpk-pk±5%93.00%≤3s
24.1-25.0 0.01-9.60240W150mVpk-pk±5%93.00%≤3s
25.1-26.0 0.01-9.23240W150mVpk-pk±5%93.00%≤3s
36.0-37.0 0.01-6.48240W200mVpk-pk±5%93.00%≤3s
37.1-38.0 0.01-6.31239.8W200mVpk-pk±5%93.50%≤3s
38.1-39.0 0.01-6.15239.8W200mVpk-pk±5%93.50%≤3s
39.1-40.0 0.01-6.00240W200mVpk-pk±5%93.50%≤3s
47.1-48.0 0.01-5.00240W250mVpk-pk±5%93.50%≤3s
48.1-49.0 0.01-4.89236.6W250mVpk-pk±5%94.00%≤3s
49.1-50.0 0.01-4.80240W250mVpk-pk±5%94.00%≤3s
50.1-51.0 0.01-4.70239.7W250mVpk-pk±5%94.00%≤3s
51.1-52.0 0.01-4.60239.2W250mVpk-pk±5%94.00%≤3s
52.1-53.0 0.01-4.53240W250mVpk-pk±5%94.00%≤3s
53.1-54.0 0.01-4.44240W250mVpk-pk±5%94.00%≤3s

The UES240DZ-SPA is a high-performance desktop power adapter specifically designed to deliver reliable and efficient power for medical equipment and information devices. With advanced features and robust certifications, this UE Electronic desktop AC adapter is ideal for sensitive and critical applications.

Medical Device Power Supply Applications

The UES240DZ-SPA serves as a dependable medical power adaptor for various healthcare equipment, ensuring safety and consistent power delivery:

  • Medical Monitors:Powers devices such as defibrillation monitors and B-ultrasound machines with precise, stable output.
  • First Aid Equipment: Provides steady power for critical emergency devices used in life-saving situations.
  • Home Medical Equipment:Certified for home-use medical applications, making it ideal for portable medical tools.
  • Treatment Machines: Perfect for all-in-one treatment machines, ensuring uninterrupted operation with robust safety protections.

The desktop power adapter’s 2 MOPP isolation protection, low leakage current (≤100μA), and compliance with medical safety certifications make it a trusted power supply for medical equipment.

Information Equipment Applications

As a desktop switching power supply, the UES240DZ-SPA is also ideal for powering communication and information systems:

  • Servers and Communication Devices: Supports sensitive network systems with stable voltage output, enhancing reliability in demanding environments.
  • POS Systems and Monitors: Provides efficient power to retail terminals and displays, ensuring smooth operation.
  • Electronic Adaptersfor IT Equipment: Functions as a desktop AC adapter for various information technology tools requiring flexible voltage levels.

The desktop power adapter’s 11-54V output, up to 240W power capacity, and GaN technology ensure high efficiency and reduced energy loss.

Key Features

  • Energy Efficiency:Meets Level 7 energy efficiency standards with standby power ≤15W, reducing energy consumption.
  • Global Usability:Equipped with 4 AC socket types, making it a versatile desktop power adaptor for worldwide use.
  • Safety Protections:Includes short circuit, overvoltage, and overload protections, ensuring safe and reliable performance.
  • High Altitude Operation: Functions seamlessly at altitudes up to 5000 meters, suitable for challenging environments.
  • Compact and Durable: Ideal as an AC DC switching adapterfor both industrial and medical environments.

The UES240DZ-SPA desktop power adapter combines efficiency, flexibility, and advanced safety, making it the ultimate medical device power supply and desktop switching power supply for critical applications.

1. What devices can the UES240DZ-SPA desktop power adapter be used for?

The UES240DZ-SPA desktop power adaptor is ideal for medical devices like first aid equipment, B-ultrasound machines, defibrillators, and medical monitors, as well as communication and information systems. UE Electronic desktop power adapter delivers stable power for sensitive devices requiring up to 240W output.

Yes, this medical power adaptor complies with global medical safety certifications, including 2 MOPP isolation protection and a leakage current of ≤100μA, ensuring it is safe and reliable for medical device power supply applications.

The UES240DZ-SPA desktop power adapter meets Level 7 energy efficiency standards with a standby power consumption of ≤0.15W, ensuring minimal power usage when not in operation. It also uses advanced GaN technology, enhancing efficiency and reducing energy loss.

This desktop switching power supply supports multiple AC inputs with 4 interchangeable socket types for global compatibility. Our desktop power adaptor provides an output range of 11-54V, with a power capacity of up to 240W to support various devices.

Yes, the desktop AC adapter is designed to work reliably at altitudes of up to 5000 meters, making it suitable for diverse environments, including remote and high-altitude locations.

The desktop switching power supply includes comprehensive protections such as short circuit protection, overvoltage protection, and overload protection, ensuring safe and stable power delivery for critical devices.

The UES240DZ-SPA is an ideal medical device power supply, with certifications to support both professional and home medical equipment. Its compatibility with various input types and reliable output ensures consistent performance.

The inclusion of GaN technology allows the AC DC switching adapter to achieve higher energy efficiency, reduced heat generation, and a more compact design, making it an advanced solution for electronic adapters.

输入电压80-264VAC;(80-90VAC 参考降额曲线) 工作温度-30~70℃(40~70℃ 参考降额曲线)
输入电流3.5A,在100VAC 输入条件下储存温度-40~80℃
输出电压范围11-54V 湿度5~90% RH, 非冷凝
平均故障间隔时间在25℃环境温度下,最大负载工作平均无故障时间100,000小时(根据MIL-HDBK-217标准)
重量650g机械规格168(L)  73(W)  31.5(H)mm
应用场所适用于医疗、信息设备类电源适配器安规标准
  • CB( IEC60601-1/ IEC60601-1-11)
  • UL(ANSI/AAMI ES60601-1/60601-1-11/CAN/CSA C22.2 NO.60601-1 )
  • TUV SUD/Mark(EN60601-1 /EN60601-1-11)
  • PSE(J62368-1)

型号电压电流瓦数

纹波及其噪音

电压公差

线性与负载调整率平均效率启动延迟时间
UES240DZ-XXXYYYSPAZ11.0-12.0 0.01-18.00216W150mVpk-pk±5%线性调整率: ±1%
负载调整率: ±5%


92.00%≤3s
12.1-13.0 0.01-16.60215W150mVpk-pk±5%92.00%≤3s
13.1-14.0 0.01-15.40215W150mVpk-pk±5%92.00%≤3s
14.1-15.0 0.01-14.40216W150mVpk-pk±5%92.00%≤3s
18.1-19.0 0.01-12.60239.4W150mVpk-pk±5%92.00%≤3s
19.1-20.0 0.01-12.00240W150mVpk-pk±5%93.00%≤3s
20.1-21.0 0.01-11.43240W150mVpk-pk±5%93.00%≤3s
21.1-22.0 0.01-10.90239.8W150mVpk-pk±5%93.00%≤3s
22.1-23.0 0.01-10.40239.2W150mVpk-pk±5%93.00%≤3s
23.1-24.0 0.01-10.00240W150mVpk-pk±5%93.00%≤3s
24.1-25.0 0.01-9.60240W150mVpk-pk±5%93.00%≤3s
25.1-26.0 0.01-9.23240W150mVpk-pk±5%93.00%≤3s
36.0-37.0 0.01-6.48240W200mVpk-pk±5%93.00%≤3s
37.1-38.0 0.01-6.31239.8W200mVpk-pk±5%93.50%≤3s
38.1-39.0 0.01-6.15239.8W200mVpk-pk±5%93.50%≤3s
39.1-40.0 0.01-6.00240W200mVpk-pk±5%93.50%≤3s
47.1-48.0 0.01-5.00240W250mVpk-pk±5%93.50%≤3s
48.1-49.0 0.01-4.89236.6W250mVpk-pk±5%94.00%≤3s
49.1-50.0 0.01-4.80240W250mVpk-pk±5%94.00%≤3s
50.1-51.0 0.01-4.70239.7W250mVpk-pk±5%94.00%≤3s
51.1-52.0 0.01-4.60239.2W250mVpk-pk±5%94.00%≤3s
52.1-53.0 0.01-4.53240W250mVpk-pk±5%94.00%≤3s
53.1-54.0 0.01-4.44240W250mVpk-pk±5%94.00%≤3s
