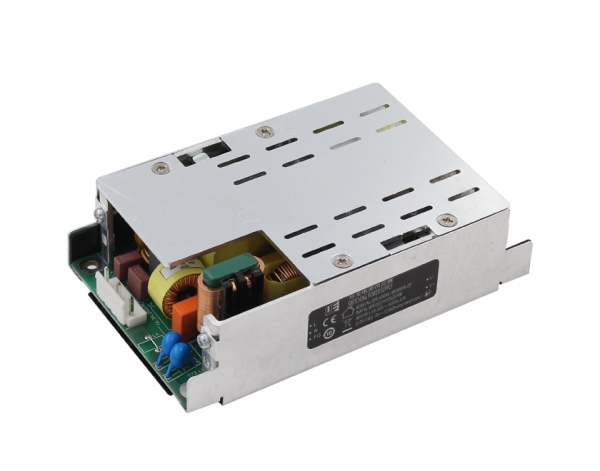

UES240-XXXYYYSPA-OP

The UES240-SPA-OP is a high-performance medical open-frame power supply designed to meet stringent safety and efficiency standards. UE Electronic open frame switching power supply’s fanless design ensures silent and durable performance with natural air cooling.

  • 符合医疗安全认证
  • 2 MOPP隔离保护
  • 漏电流 ≤ 100μA
  • 符合六级能效
  • 待机功耗≤0.21W
  • 峰值负载:120%额定负载(1s)
  • 工作海拨高度5000米
  • 拨码开关控制输出
  • 无风设计特点,自然风冷
产品特性
输入电压80-264VAC(80-115VAC 参考降额曲线 )工作温度-30~70℃ (40- 70℃参考降额曲线 )
输入电流4.0A,在100VAC 输入条件下储存温度-40~85℃
输出电压范围±5%工作湿度5~90% RH, 非冷凝
待机功耗≤0.5W平均故障间隔时间>500,000hrs MIL-HDBK-217,在25℃环境温度下。
重量300g机械规格127.0(L)  76.2(W)  34.5(H)mm
应用场所适用于医疗类电源适配器安规标准CB( IEC60601-1/ IEC62368-1)、TUV-NRTL(ANSI/AAMI ES60601-1/CAN/CSA C22.2 NO.60601-1/UL62368-1)、TUV Mark(EN60601-1)、FCC(FCC PART 15)
型号

电压

(V)

电流

(A)

功率

(W)

纹波
(最大)
mVpk-pk
电压公差线性与负数调整率平均效率启动延迟时间
UES240-XXXYYYSPA-OP11.0-12.00.01-18.00216.0150±5%

线性调整率: ±1%

负载调整率: ±5%

90.0%≤3s
12.1-13.00.01-16.60215.0150±5%90.0%≤3s
13.1-14.00.01-15.40215.0150±5%90.0%≤3s
14.1-15.00.01-14.40216.0150±5%90.0%≤3s
18.0-19.00.01-12.60239.4150±5%91.0%≤3s
19.1-20.00.01-12.00240.0150±5%91.0%≤3s
20.1-21.00.01-11.43240.0150±5%91.0%≤3s
21.1-22.00.01-10.90239.8150±5%91.0%≤3s
22.1-23.00.01-10.40239.2150±5%91.0%≤3s
23.1-24.00.01-10.00240.0150±5%91.0%≤3s
24.1-25.00.01-9.60240.0150±5%91.0%≤3s
25.1-26.00.01-9.23240.0150±5%91.0%≤3s
36.0-37.00.01-6.48240.0200±5%91.5%≤3s
37.1-38.00.01-6.31239.8200±5%91.5%≤3s
38.1-39.00.01-6.15239.9200±5%91.5%≤3s
39.1-40.00.01-6.00240.0200±5%92.0%≤3s
45.0-48.00.01-5.00240.0250±5%92.0%≤3s
48.1-49.00.01-4.89236.6250±5%92.0%≤3s
49.1-50.00.01-4.80240.0250±5%92.0%≤3s
53.1-51.00.01-4.70239.7250±5%92.0%≤3s
51.1-52.00.01-4.60239.2250±5%92.0%≤3s
52.1-53.00.01-4.53240.0250±5%92.0%≤3s
53.1-54.00.01-4.44239.8250±5%92.0%≤3s

The UES240-SPA-OP is a robust open-frame power supply designed to meet the stringent requirements of healthcare applications. This UE Electronic open frame switching power supply is ideal for powering critical medical devices, offering reliable performance with an input voltage range of 80-264VAC and an operating temperature range of -30°C to 70°C (with derating above 40°C). Our switching power supply module delivers stable power while maintaining strict compliance with IEC60601-1 medical safety standards, ensuring the safety and reliability of your equipment.

As a medical open frame power supply, the UES240-SPA-OP provides 2 MOPP isolation protection and maintains a leakage current ≤100µA, crucial for sensitive medical environments. The medical open frame power supply can handle a peak load of 120% of the rated load for up to one second, offering the flexibility needed for various medical devices. UE Electronic open frame switching power supply also features natural air cooling, ensuring windless operation for noise-sensitive environments.

This open-frame power supply is suitable for medical power adapters and is perfect for use in applications such as:

Patient Monitoring Systems: Ensures stable and continuous power for accurate readings and monitoring.

Diagnostic and Imaging Equipment: Powers ultrasound machines, MRI systems, and other diagnostic tools with consistent and reliable energy.

Therapeutic Equipment: Ideal for devices like ventilators, infusion pumps, and other critical medical machinery requiring stable power sources.

With an efficient standby power consumption of ≤0.21W, a mean time between failures of over 500,000 hours, and its compact design (300g), the UES240-SPA-OP is a trusted and energy-efficient solution for your medical power supply needs.

1. What certifications does the UES240-SPA-OP medical open frame power supply meet?

The UES240-SPA-OP is an open-frame power supply suitable for medical power adapters that meet critical medical safety certifications, including IEC60601-1 standards, ensuring it is safe for use in medical environments. UE Electronic medical open frame power supply also complies with Energy Efficiency Level VI for high energy savings.

This open-frame power supply can handle a peak load of 120% of its rated load for up to 1 second. UE Electronic open-frame power supply is suitable for powering medical devices and equipment that may experience occasional power surges.

Yes, the UES240-SPA-OP open frame switching power supply provides 2 MOPP isolation protection, ensuring patient safety and compliance with medical safety standards. This open-frame power supply is ideal for medical applications that require stringent isolation.

The UES240-SPA-OP switching power supply module has a leakage current of ≤ 100µA. Our open-frame power supply is a safe and reliable medical power supply for use in sensitive environments where even minimal leakage current is unacceptable.

The open frame AC/DC power supply operates in a temperature range of -30°C to 70°C, with a derating curve for temperatures above 40°C, making it suitable for a variety of environments, including medical and industrial settings.

The open frame power supply UES240-SPA-OP has a very low standby power consumption of ≤ 0.21W, ensuring it remains highly energy-efficient, a key feature for switching power supply modules used in energy-conscious medical devices.

The UES240-SPA-OP medical open frame power supply can operate at altitudes up to 5000 meters, making it suitable for use in medical power supplies used in high-altitude applications, such as airborne medical devices or remote locations.

This open frame switching power supply has a mean time between failures (MTBF) of over 500,000 hours, ensuring a long lifespan and exceptional reliability for critical medical open frame power supply applications.

输入电压80-264VAC(80-115VAC 参考降额曲线 )工作温度-30~70℃ (40- 70℃参考降额曲线 )
输入电流4.0A,在100VAC 输入条件下储存温度-40~85℃
输出电压范围±5%工作湿度5~90% RH, 非冷凝
待机功耗≤0.5W平均故障间隔时间>500,000hrs MIL-HDBK-217,在25℃环境温度下。
重量300g机械规格127.0(L)  76.2(W)  34.5(H)mm
应用场所适用于医疗类电源适配器安规标准CB( IEC60601-1/ IEC62368-1)、TUV-NRTL(ANSI/AAMI ES60601-1/CAN/CSA C22.2 NO.60601-1/UL62368-1)、TUV Mark(EN60601-1)、FCC(FCC PART 15)
型号

电压

(V)

电流

(A)

功率

(W)

纹波
(最大)
mVpk-pk
电压公差线性与负数调整率平均效率启动延迟时间
UES240-XXXYYYSPA-OP11.0-12.00.01-18.00216.0150±5%

线性调整率: ±1%

负载调整率: ±5%

90.0%≤3s
12.1-13.00.01-16.60215.0150±5%90.0%≤3s
13.1-14.00.01-15.40215.0150±5%90.0%≤3s
14.1-15.00.01-14.40216.0150±5%90.0%≤3s
18.0-19.00.01-12.60239.4150±5%91.0%≤3s
19.1-20.00.01-12.00240.0150±5%91.0%≤3s
20.1-21.00.01-11.43240.0150±5%91.0%≤3s
21.1-22.00.01-10.90239.8150±5%91.0%≤3s
22.1-23.00.01-10.40239.2150±5%91.0%≤3s
23.1-24.00.01-10.00240.0150±5%91.0%≤3s
24.1-25.00.01-9.60240.0150±5%91.0%≤3s
25.1-26.00.01-9.23240.0150±5%91.0%≤3s
36.0-37.00.01-6.48240.0200±5%91.5%≤3s
37.1-38.00.01-6.31239.8200±5%91.5%≤3s
38.1-39.00.01-6.15239.9200±5%91.5%≤3s
39.1-40.00.01-6.00240.0200±5%92.0%≤3s
45.0-48.00.01-5.00240.0250±5%92.0%≤3s
48.1-49.00.01-4.89236.6250±5%92.0%≤3s
49.1-50.00.01-4.80240.0250±5%92.0%≤3s
53.1-51.00.01-4.70239.7250±5%92.0%≤3s
51.1-52.00.01-4.60239.2250±5%92.0%≤3s
52.1-53.00.01-4.53240.0250±5%92.0%≤3s
53.1-54.00.01-4.44239.8250±5%92.0%≤3s
