For equipment manufacturers selling the same product across several countries, the AC input connection can become a surprisingly important part of product planning. Different regions use different wall-socket formats, yet redesigning the complete power adapter for every market can complicate product management and certification. At UE Electronic, we address this requirement with interchangeable-plug designs that allow one power-adapter platform to support different regional AC connections.

What Is an Interchangeable AC Plug Adapter?

An interchangeable AC plug adapter combines a power-conversion circuit with a removable AC plug system. Instead of permanently fixing one regional plug to the adapter, the plug section can be changed to match the intended market.

This differs from a simple travel plug converter. The adapter performs AC-to-DC power conversion, while the interchangeable plug provides the appropriate connection to the local AC socket.

For OEMs and equipment manufacturers, this separation between the conversion platform and AC plug configuration can make international product planning more flexible.

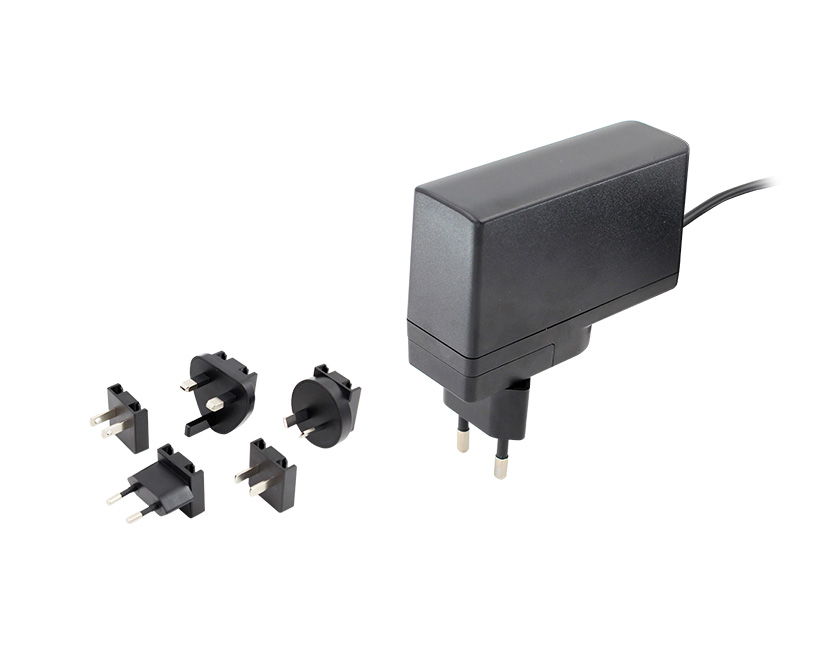

Our UES24LCP-SPA is designed around this concept. The official product information describes it as a universal AC plug adapter for medical switched-mode power supply and I.T.E. switching power supply applications, with various interchangeable AC plug styles available.

How Does Interchangeable Plug Design Help Global Products?

The most obvious advantage is regional compatibility. The UES24LCP-SPA supports interchangeable AC plug options including US/JP, EU, UK, AU, and CN styles according to the product’s technical documentation. The DC cable and connector can also be customized according to the applicable product configuration.

As a universal AC plug adapter, the UES24LCP-SPA allows manufacturers developing equipment for multiple markets to treat the AC connection as a configurable element rather than an entirely separate adapter design.

Instead of changing the complete power-conversion unit simply because the wall connection differs, the appropriate plug configuration can be selected for the target market.

Why Is Input Compatibility More Than a Plug Shape?

A plug’s physical compatibility is only one part of international power design. The adapter also needs to accept the AC conditions expected in the target market.

The UES24LCP-SPA provides a 90–264VAC input range, allowing it to accommodate a broad range of AC supply conditions within its specified limits. Its rated input current is 0.5A. The product is specified for operation from 0°C to 45°C, with storage from -20°C to 60°C, and a working altitude of up to 5,000 meters.

The plug addresses the physical interface, while the power-conversion circuitry is designed around the specified electrical input range.

What Output Options Does the UES24LCP-SPA Provide?

Interchangeability would have limited value if the adapter could not also match the equipment’s DC requirements. The UES24LCP-SPA therefore offers configurable output from 6.1V to 52V, with maximum power up to 24W.

For example, the 6.1–7.0V range supports up to 3.00A and 21W, while 10.1–24.0V configurations can reach 24W with lower current at higher voltages. At 45.1–52.0V, the maximum current is approximately 0.46–0.52A.Maximum ripple varies by output range, while voltage tolerance is specified at ±5%.

This range allows equipment designers to select an output configuration according to the electrical requirements of the host device rather than treating the adapter as a single fixed-voltage product.

What Safety Features Matter in Medical and I.T.E. Applications?

At UE Electronic, we consider safety and compliance alongside international compatibility.The UES24LCP-SPA provides 2 MOPP input-to-output isolation and specifies touch current of no more than 100μA. It is also listed with medical and I.T.E. safety approvals covering standards including IEC 60601-1, IEC 62368-1, and related regional requirements. The product also incorporates short-circuit, overvoltage, and overload protection.

For medical applications in particular, the final system still needs to be assessed according to its own applicable standards and intended use. Adapter-level certifications do not replace system-level compliance evaluation.

How Does Compact Design Benefit Equipment Integration?

The UES24LCP-SPA measures 88.0 × 30.0 × 57.0mm and weighs approximately 170g. Its compact wall-plug format can be useful where the external power adapter needs to remain relatively unobtrusive while still providing regulated DC output.

The product also specifies standby power consumption of no more than 0.075W and an average efficiency of approximately 86.2% to 87.0%, depending on the output configuration in the detailed specification.

For OEM designers, these figures are more meaningful when considered together with the equipment’s operating profile, available space, required output, and target markets.

When Does an Interchangeable Plug Architecture Make Sense?

An interchangeable system is particularly relevant when one equipment platform is expected to serve multiple regions. Medical devices, laboratory equipment, communication products, and other I.T.E. systems may require different AC plug configurations depending on where they are deployed.

A universal AC plug adapter can provide a practical foundation for this type of product strategy because the AC interface can be configured separately from the core power-conversion requirements.

Manufacturers first establish the required electrical and safety characteristics, then select the appropriate plug configuration for each market.

Designing for Different Markets Without Redesigning the Power Architecture

The main benefit of an interchangeable AC plug is not simply convenience. It is the ability to separate regional AC compatibility from the core power-conversion platform.

The UES24LCP-SPA combines a 90–264VAC input range, 6.1–52V configurable DC output, up to 24W power, multiple interchangeable AC plug options, 2 MOPP isolation, and protection functions within a compact 88 × 30 × 57mm adapter.

At UE Electronic, we see this architecture as a practical option for manufacturers developing products for multiple markets. By combining a configurable AC interface with defined electrical and safety characteristics, our universal AC plug adapter solutions can give OEMs greater flexibility when adapting a common power platform to different regional requirements.
