Open frame switching power supplies (Open Frame PSU) are crucial in modern electronics, providing efficient power conversion for a wide range of applications. Unlike traditional enclosed power supplies, open frame PSUs have no external protective shell, offering advantages such as enhanced compactness, heat dissipation, and application flexibility. As UE Electronic, a professional power supply manufacturer with over 30 years of experience, we are committed to delivering reliable and efficient power solutions to customers worldwide. This article will explore the role of open frame switching power supplies, their key features, and their applications in industries like medical, communication, and industrial sectors.
What is an Open Frame Switching Power Supply?
An open frame switching power supply is a type of power module that converts alternating current (AC) into direct current (DC). Unlike enclosed power supplies, open frame PSUs lack a protective casing, which makes them exposed components that can easily be integrated into custom enclosures or devices. This design provides greater compactness and allows for efficient heat dissipation through external cooling systems such as fans or natural convection. Open frame switching power supplies are especially suitable for applications where space-saving and effective heat management are important.
Key features of open frame switching power supplies include:
Compact Design: Without the outer shell, open frame PSUs are more compact and suitable for smaller device spaces.
Heat Dissipation Efficiency: The open structure allows for better heat dissipation, making them ideal for high-power applications.
Cost-Effectiveness: The absence of an outer casing reduces manufacturing costs, making open frame PSUs more affordable and suited for mass production.
Applications of Open Frame Switching Power Supplies in Medical Devices

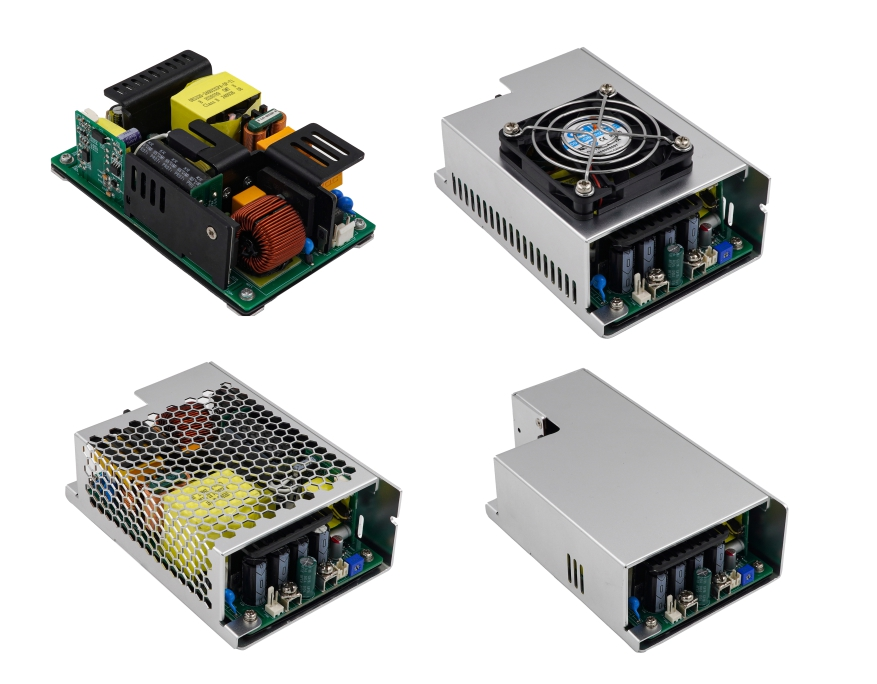

In the medical industry, power supply reliability and safety are essential. Open frame switching power supplies, such as UE Electronic’s UES500-SPAZ-OP, are widely used in critical medical devices that require consistent and stable power. These power supplies ensure that devices like diagnostic equipment, patient monitors, and life support systems receive a continuous power supply, reducing the risk of device failure. One key feature of the UES500-SPAZ-OP is its 2 MOPP isolation protection, which meets stringent medical safety standards. This feature provides protection against electrical shocks for patients and ensures the safe operation of medical devices in demanding environments. Additionally, the UES500-SPAZ-OP offers standby power consumption of ≤0.5W, which ensures energy efficiency and reduces unnecessary power consumption over time.
Open Frame Switching Power Supplies in Communication and IT Equipment
Open frame switching power supplies are also essential for communication and IT equipment, which require uninterrupted power to ensure continuous operation. For instance, servers, routers, and other network devices depend on stable and efficient power to operate effectively. UES500-SPAZ-OP is designed to meet these needs, providing reliable power even under heavy load conditions. The UES500-SPAZ-OP supports an input voltage range of 80-264VAC, making it compatible with global power grids. This feature makes it especially useful in international markets, while its efficient energy management helps reduce energy consumption, thus lowering operational costs.
Safety and Compliance: Essential Considerations When Choosing Open Frame PSUs
When selecting open frame switching power supplies, safety and compliance are vital factors, especially for sensitive medical and communication devices. The UES500-SPAZ-OP complies with multiple international safety certifications, including UL, CE, and IEC, ensuring that it can operate safely in high-risk environments. In addition to 2 MOPP isolation protections, the UES500-SPAZ-OP features a leakage current of ≤100 μA, further enhancing safety in sensitive applications. It also meets DOE Level 6 efficiency standards, ensuring minimal energy consumption and environmental friendliness.
Versatility of Open Frame Switching Power Supplies Across Industries
The versatility of open frame switching power supplies makes them suitable for various industries. From automation systems to high-power industrial electronics, open frame PSUs are able to meet diverse power requirements. For example, UES500-SPAZ-OP demonstrates how open frame power supplies can offer customized solutions based on specific needs. Whether in medical, IT, or industrial applications, open frame PSUs deliver reliable and efficient power, meeting the specific requirements of each sector.
Why Open Frame Switching Power Supplies Matter in Modern Electronics
Open frame switching power supplies play an essential role in modern electronics, providing compact designs, efficient power conversion, and flexibility for a wide range of applications. Whether for medical devices, communication equipment, or industrial products, UES500-SPAZ-OP offers the stable and efficient power needed for optimal device performance. If you are looking for a trusted partner to provide customized open frame power supply solutions, UE Electronic can help meet your unique power requirements. Contact us today to learn more about our products and see how we can assist in delivering precise and reliable power to your devices. This article offers a detailed exploration of the role of open frame switching power supplies (open frame PSU), with a focus on UE Electronic’s UES500-SPAZ-OP. It highlights key features and applications of open frame power supplies in medical, communication, and industrial sectors. The content is designed to provide users with valuable insights into the importance of open frame PSUs and how to select the right power supply solution for their specific needs.
