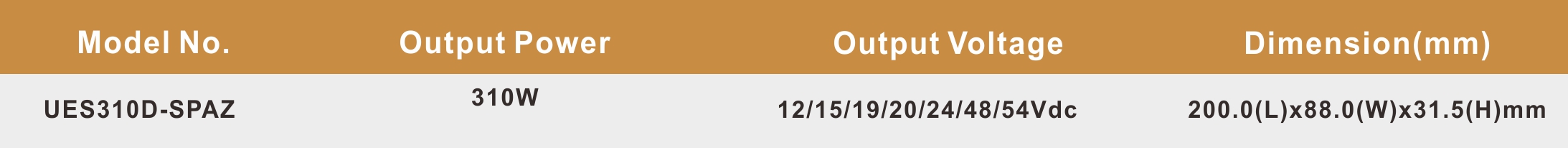

UE Electronic Official Release UES310D This series of desktop switching power adapters utilizes advanced GaN (Gallium Nitride) technology, incorporating both medical and industrial safety standards. It offers stable output up to 310W, an ultra-wide voltage range, and excellent environmental tolerance, providing a one-stop, highly reliable power solution for high-end applications.
I. Core Advantages: High efficiency, full voltage, dual certification
1. GaN technology enables breakthroughs in both energy efficiency and reliability:
Utilizing cutting-edge GaN (Gallium Nitride) semiconductor technology, this product achieves a conversion efficiency of up to 92%-93%, far exceeding traditional silicon-based power supplies, significantly reducing energy consumption and heat dissipation. It has passed DOE Level VI energy efficiency certification, with standby power consumption ≤0.15W, meeting stringent environmental standards. It also supports operation at altitudes up to 5000 meters, easily handling special environments such as plateaus and mountains.
2. Globally compatible with wide formats, highly adaptable:
The input supports an ultra-wide voltage range of 80Vac-264Vac and an AC frequency range of 47Hz-63Hz, seamlessly adapting to global power grids. The output can provide a voltage range of 12.0V-54.0V, meeting the needs of medium to high-power equipment. It comes standard with four interchangeable AC input interfaces: C6, C8, C14, and C18, achieving true global compatibility.
3. Dual security certifications, medical-grade reliable protection:
It meets both IEC60601-1 (medical) and IEC62368-1 (ITE) international safety standards. Utilizing a medical-grade 2MOPP isolation design, it ensures a touch leakage current of ≤100μA, providing the highest level of safety for operators and sensitive equipment.
II. Comprehensive protection design: Stable operation, meeting harsh environments.
The UES310D series features built-in multiple protection circuits including overcurrent, overvoltage, short circuit, and overpower protection, along with automatic recovery functionality, providing comprehensive protection for terminal equipment. Its operating temperature range is wide, from -20℃ to 40℃, and its humidity tolerance range is 5%-90%, enabling it to maintain stable operation for extended periods in various extreme environments such as high and low temperatures and high humidity, ensuring maximum reliability.
III. Application Scenarios: Covering all scenarios from medical equipment to industrial cores.
With its medical-grade safety, high power density, and excellent environmental adaptability, this series of power adapters is widely applicable to:
• Medical equipmentDiagnostic instruments, monitoring equipment, medical imaging equipment, etc.
• Industrial ControlPLCs, frequency converters, industrial sensors, and automated production lines;
• Communications and NetworksBase station equipment, routers, switches, etc.;
• Other high-end electronic devices: Various terminal products that require stable, efficient, and safe power supply.
Taken together,UES310DWith its high efficiency of GaN technology, dual-certified security, and reliability in a wide range of environments, the series of adapters has become the ideal cornerstone for stable power supply in high-end application scenarios.
